Rear Door Module - Project 8 (G2249552): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Remove the rear door trim panel.
Refer to: REAR DOOR TRIM PANEL

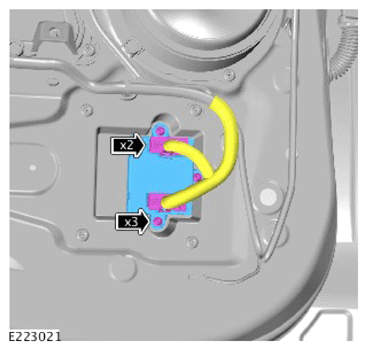

- Disconnect the 2 electrical connectors.
- Remove the 3 screws.
- Remove the Rear Door Module (RDM).
