Rear Door Module (G1822792): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.
  1. Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
  2. Refer to: REAR DOOR TRIM PANEL

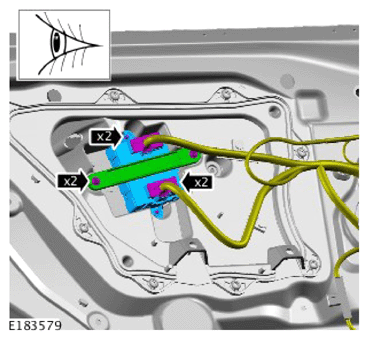

  3. G14009801Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
