Smart Key Battery Replacement (G2889246): Programming

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:
- When the smart key battery needs replacing, there is a significant decrease in the effective range and the instrument panel displays a warning message.
- To replace the battery follow the steps detailed.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

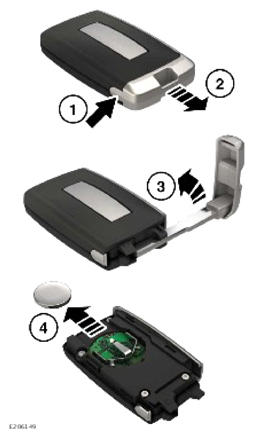

1. Push the button on the smart key, to withdraw the emergency key blade.
2. Pull the emergency key blade in the direction of the arrow.
3. Use the emergency key blade to separate the smart key body.
4. Install a new battery, with the positive (+) side upward.
5. Reassemble the smart key.
NOTE: Vehicles with passive entry only.

Wait 10 minutes for the smart key internal battery to recharge and run the 'Smart Key Health Check' application to confirm the rechargeable battery state of charge.
