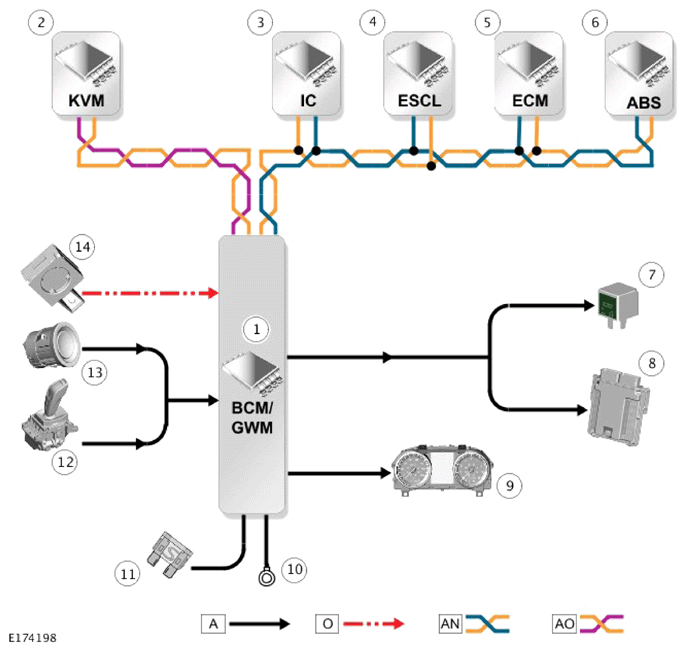

Input/Output Diagram - Sheet 2 Of 2 - Passive Start
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED; AN = HS (HIGH SPEED) CONTROLLER AREA NETWORK (CAN) POWERTRAIN SYSTEMS BUS; AO= MS (MEDIUM SPEED) CAN BODY SYSTEMS BUS; O = LIN (LOCAL INTERCONNECT NETWORK) BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Body Control Module/Gateway Module (BCM/GWM) |
| 2 | Keyless Vehicle Module (KVM) |
| 3 | Instrument Cluster (IC) |
| 4 | Electric Steering Column Lock (ESCL) |
| 5 | Engine Control Module (ECM) |
| 6 | Anti-lock Brake System (ABS) control module |
| 7 | Fuel pump relay |
| 8 | Engine Control Module (ECM) |
| 9 | Instrument Cluster (IC) |
| 10 | Ground |
| 11 | Permanent power feed |
| 12 | Transmission selector switch |
| 13 | Stop/Start switch |
| 14 | Immobilzer Antenna Unit (IAU) |
