Torque Specifications
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

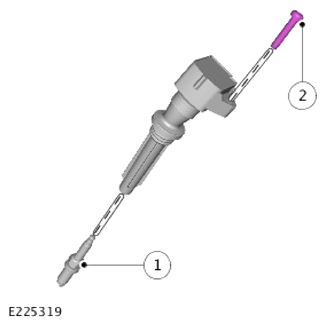

COMPONENT TORQUE LOCATION
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
SPECIFICATION |
| Firing order |
1:5:4:2:6:3:7:8 |
| Spark plug type |
ILKAR7C10 |
TORQUE SPECIFICATION
| |
DESCRIPTION |
NM |
LB-FT |
LB-IN |
| 1 |
Spark plug |
22 |
16 |
- |
| 2 |
Ignition coil on-plug bolt |
7 |
- |
62 |
