Component Location

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

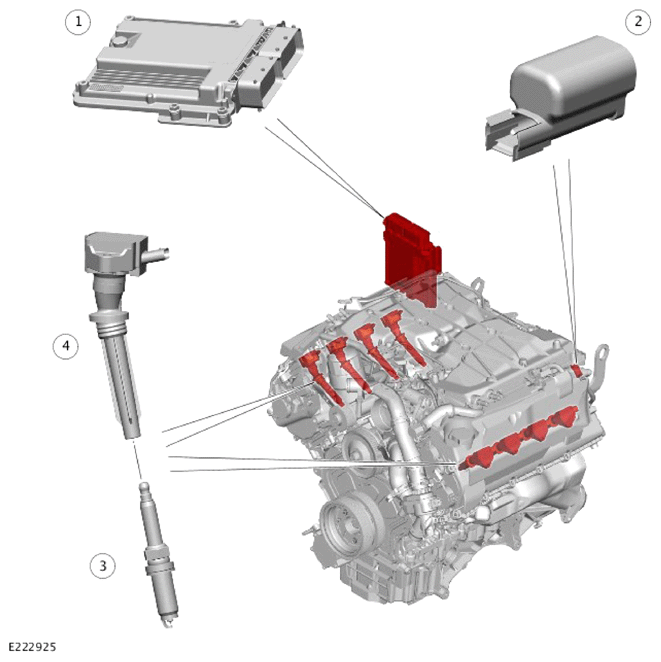

G14004493Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Powertrain Control Module (PCM)
2 Radio Frequency Interface (RFI) suppressor
3 Spark plug (8 off)
4 Ignition coil (8 off)
