Rear Wheel Speed Sensor - Project 8 (G2248775): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations for left side components, right side components are similar.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
- Remove the rear left wheel and tire.
Refer to: WHEEL AND TIRE - PROJECT 8
- Remove the rear undershield.
Refer to: REAR UNDERSHIELD - PROJECT 8

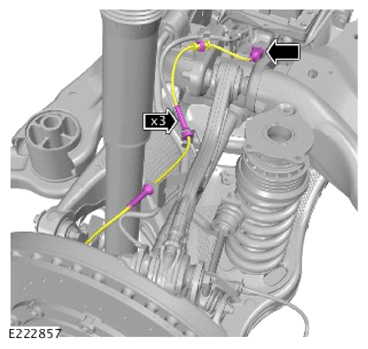

- Release the wiring harness.
- Disconnect the electrical connector.

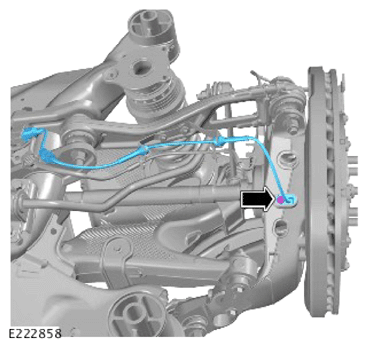

- Remove the bolt.
- Remove the rear wheel speed sensor.
