Rear Wheel Speed Sensor (G1817293): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Removal steps in this procedure may contain installation details.
- Left illustration shown, right is similar.
- The ignition must be switched off.
-
WARNING: Make sure to support the vehicle with axle stands.

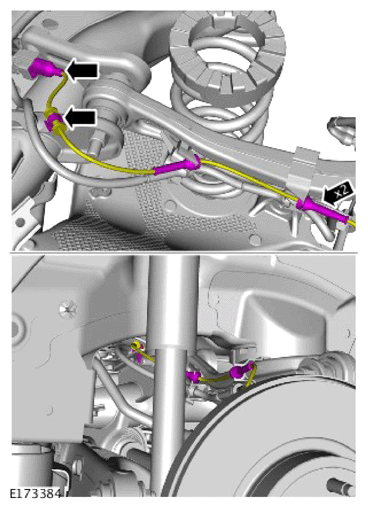

Raise and support the vehicle.
- For additional information, Refer to: WHEEL AND TIRE

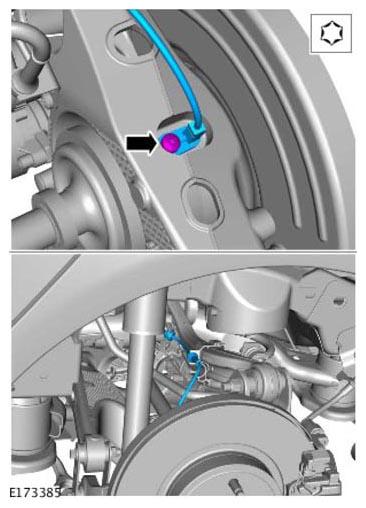

TORQUE: 9 Nm
