Front Wheel Speed Sensor - Project 8 (G2248774): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations for left side components, right side components are similar.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

  2. Remove the front left wheel arch liner.

    Refer to: FRONT WHEEL ARCH LINER - PROJECT 8

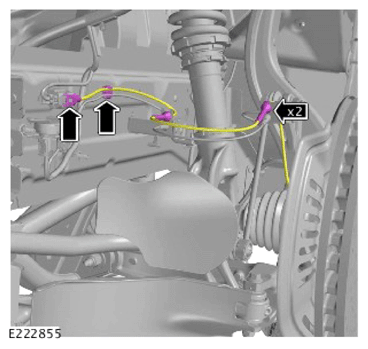

  3. G13996796Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the wiring harness.
    • Disconnect the electrical connector.

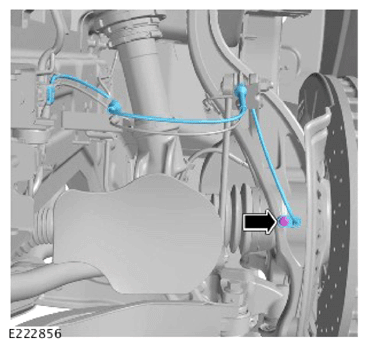

  4. G13996797Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
