Front Wheel Speed Sensor (G1817292): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains illustrations for left side components, right side components are similar.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
- Remove the front wheel arch liner.
Refer to: FRONT WHEEL ARCH LINER

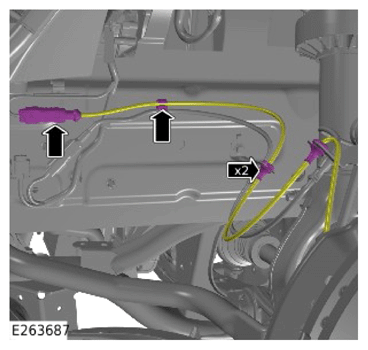

- Disconnect the electrical connector.
- Release the front wheel speed sensor wiring harness from the clip.
- Release the front wheel speed sensor from the 2 grommets.

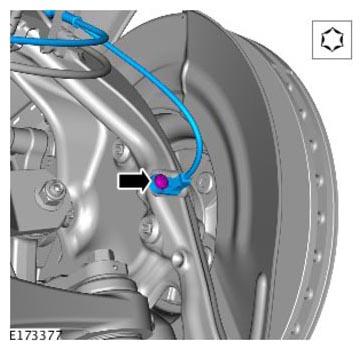

- Remove the bolt.
- Remove the front wheel speed sensor.
