Anti-Lock Brake System Control Module (G1817291): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
For additional information, Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
For additional information, Refer to: COWL PANEL
CAUTION: Before disconnecting or removing components, ensure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.

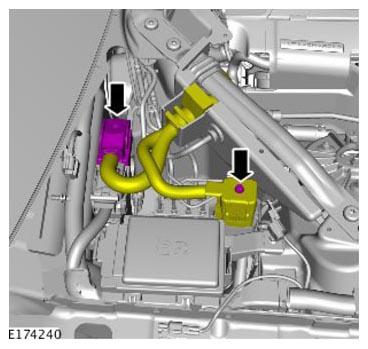

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE: 3.5 Nm

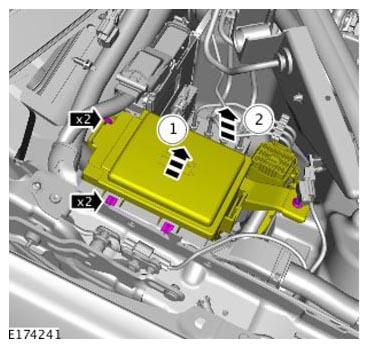

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE: 4 Nm
CAUTION:
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
- If brake fluid is spilt on the paintwork, the affected area must be immediately washed down with cold water.

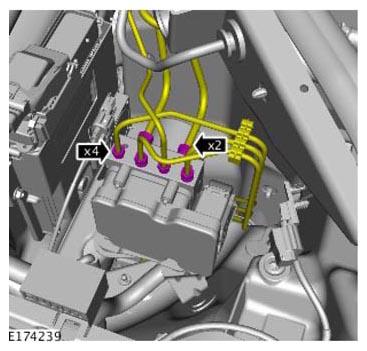

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE: 17 Nm

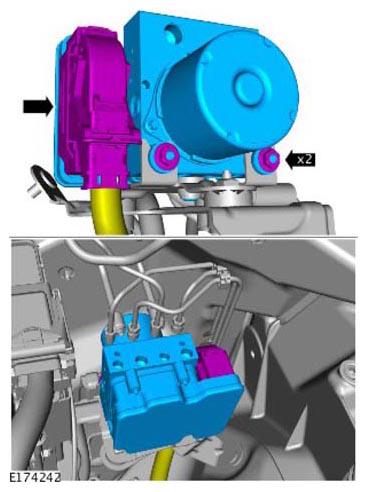

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE: 8 Nm

Loosen but do not remove the 2 nuts.
