Instrument Cluster Warning Indicators
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

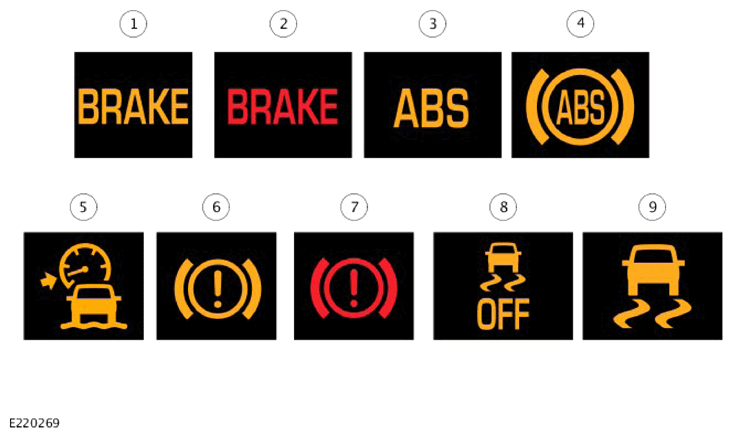

| ITEM | DESCRIPTION |
|---|---|
| 1 | Brake system warning indicator - Amber - Worn brake pads or Emergency Brake Assist (EBA) warning indicator - North |
| American | Specification (NAS) |
| 2 | Brake system warning indicator - Red - Low brake fluid level or Electronic Brake Force Distribution (EBD) malfunction indicator - NAS |
| 3 | Anti-lock Brake System (ABS) warning indicator - Amber - NAS |
| 4 | ABS warning indicator - Amber - Rest of World (ROW) |
| 5 | All surface progress control warning indicator |
| 6 | Brake system warning indicator - Amber - Worn brake pads or EBA warning indicator - ROW |
| 7 | Brake system warning indicator - Red - Low brake fluid level or EBD malfunction indicator - ROW |
| 8 | Dynamic Stability Control (DSC) OFF warning indicator |
| 9 | DSC activity warning indicator |
The Instrument Cluster (IC) and message center has warning indicators and warning messages to display the operating status of the anti-lock control stability assist functions. The warning indicators and messages give a visual notification of either a system warning or an information indication to the driver. There are 4 warning indicators on the IC, which vary dependent on the market. Besides there are several types of message relating to the anti-lock control stability assist functions. The 'DSC OFF' message is accompanied by an audible warning.
The following anti-lock control stability assist warning indicators are installed in the IC:
- Amber Anti-lock Brake System (ABS) warning indicator
- Red brake warning indicator
- Amber Dynamic Stability Control (DSC) activity warning indicator
- Amber 'DSC OFF' warning indicator.
