Brake Pedal Switch
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The brake pedal switch is also part of the speed control system.

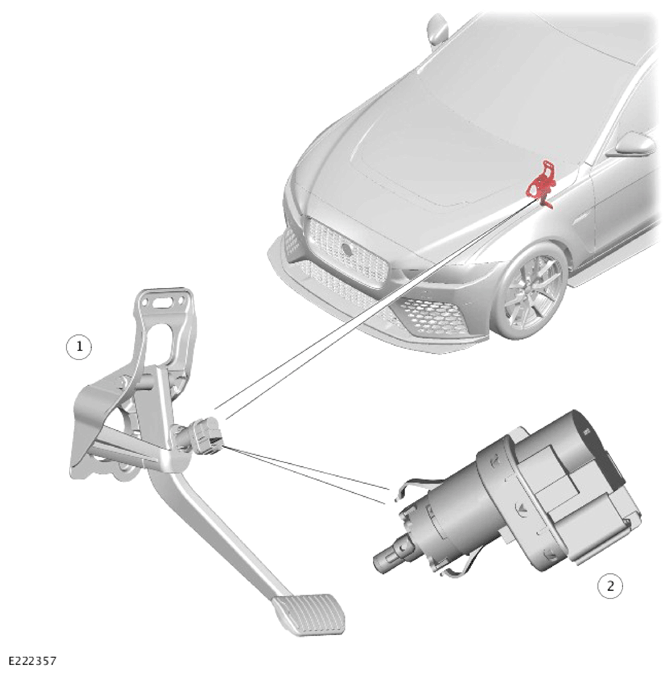

| ITEM | DESCRIPTION |
|---|---|
| 1 | Brake pedal |
| 2 | Brake pedal switch |
The brake pedal switch is attached to the brake pedal bracket and connected to the vehicle wiring harness using a 4-pin multiplug. When the brake pedal is pressed, the switch contacts close. This sends a hardwired signal to the Powertrain Control Module (PCM). A brake pedal switch status message is then sent from the PCM to the Anti-lock Brake System (ABS) control module. This sending is completed on the High Speed (HS) Controller Area Network (CAN) chassis systems bus and Flexray. The ABS control module controls the braking force accordingly in conjunction with the Hydraulic Control Unit (HCU).
