Component Location - 2 Of 2

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

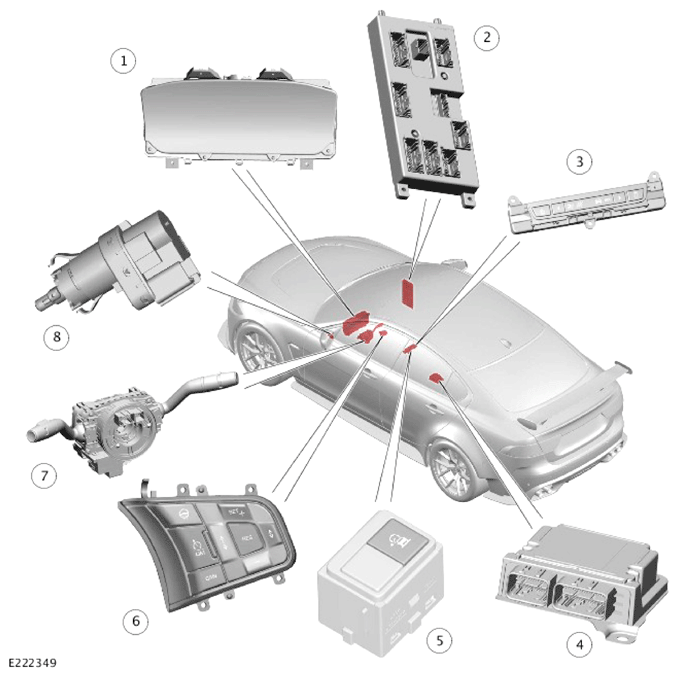

G13996758Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Instrument Cluster (IC)
2 Body Control Module/Gateway Module (BCM/GWM)
3 JaguarDrive Switchpack (JDS)
4 Restraints Control Module (RCM)
5 All surface progress control switch
6 Right steering wheel switchpack
7 Steering Wheel Module (SWM)
8 Brake pedal switch
