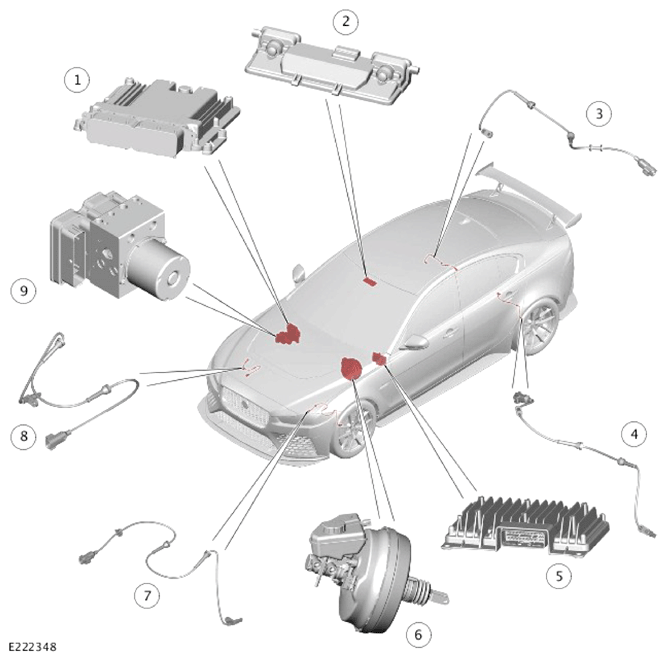

Component Location - 1 Of 2
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Image Processing Module (IPMA) |
| 3 | Rear right wheel speed sensor |
| 4 | Rear left wheel speed sensor |
| 5 | All surface progress control |
| 6 | Brake master cylinder and brake booster |
| 7 | Front left wheel speed sensor |
| 8 | Front right wheel speed sensor |
| 9 | Anti-lock Brake System (ABS) control module |
