Control Diagram
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

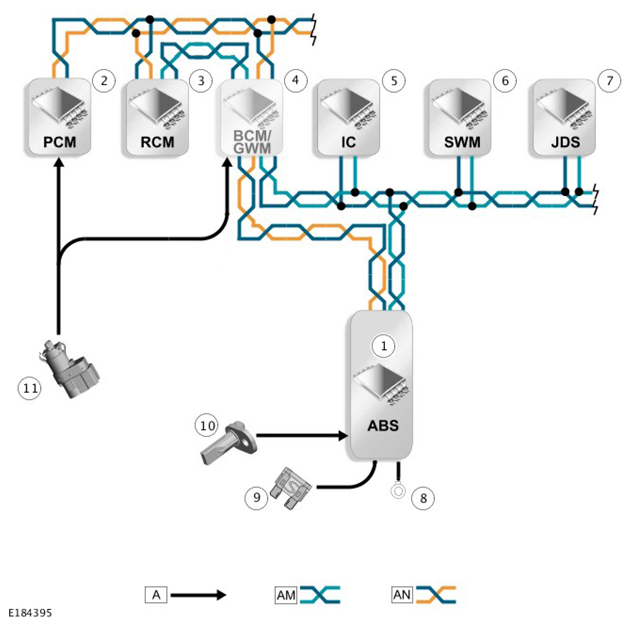

A = HARDWIRED; AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS SYSTEMS BUS; AN = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWERTRAIN SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Anti-lock Brake System (ABS) control module |
| 2 | Powertrain Control Module (PCM) |
| 3 | Restraints Control Module (RCM) |
| 4 | Body Control Module/Gateway Module (GWM) assembly |
| 5 | Instrument Cluster (IC) |
| 6 | Steering Wheel Module (SWM) |
| 7 | JaguarDrive Switchpack (JDS) |
| 8 | Ground |
| 9 | Power supply from Engine Junction Box (EJB) |
| 10 | Wheel speed sensor (4 off) |
| 11 | Brake pedal switch |
