Brake Warning Indicators
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

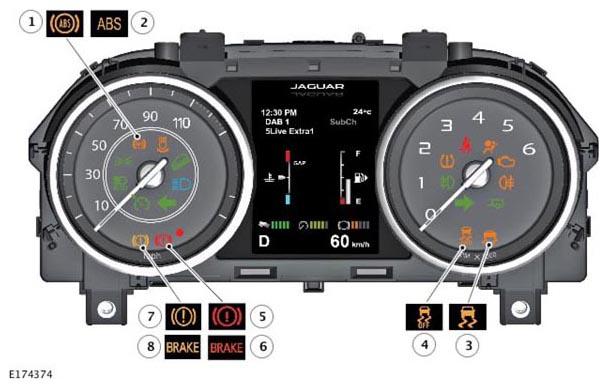

| ITEM | DESCRIPTION |
|---|---|
| 1 | Anti-lock Brake System (ABS) warning indicator (all markets, except USA) |
| 2 | Anti-lock Brake System (ABS) warning indicator (USA only) |
| 3 | Dynamic Stability Control (DSC) activity warning indicator |
| 4 | 'DSC OFF' warning indicator |
| 5 | Brake system warning indicator - Low brake fluid level or Electronic Brake Distribution (EBD) function failure indicator (all markets, except USA) |
| 6 | Brake system warning indicator - Low brake fluid level or Electronic Brake Distribution (EBD) function failure indicator (USA only) |
| 7 | Brake system warning indicator - worn brake pads or Emergency Brake Assist (EBA) failure indicator (USA only) |
| 8 | Brake system warning indicator - worn brake pads or Emergency Brake Assist (EBA) failure indicator (all markets, except USA) |
The IC and message center has warning indicators and warning messages to display the operating status of the Anti-lock Control - Stability assist functions. The warning indicators and messages give a visual notification of either a system warning or information indication to the driver. There are four warning indicators on the IC, which vary dependent on the market, and several types of message relating to the anti-lock control - stability assist functions. The 'DSC OFF' message is accompanied by an audible warning.
The following anti-lock control - stability assist warning indicators are installed in the IC:
- An amber ABS warning indicator
- A red brake warning indicator
- An amber DSC activity warning indicator
- An amber DSC OFF warning indicator.
