Brake Pedal Switch
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Manual transmission variant is shown, automatic transmission variant is similar.

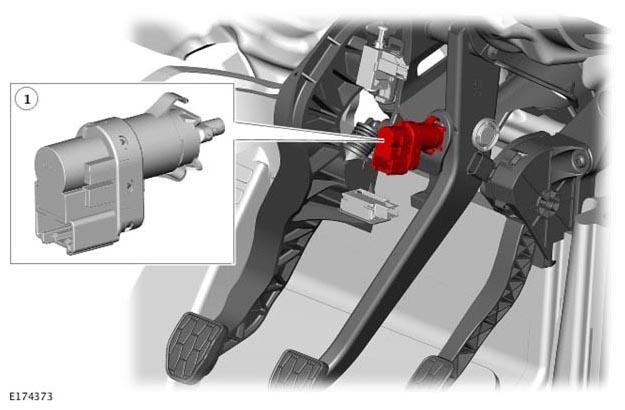

| ITEM | DESCRIPTION |
|---|---|
| 1 | Brake pedal switch |
The brake pedal switch is attached to the brake pedal bracket and connected to the vehicle harness using a four-pin multiplug. When the brake pedal is pressed, the switch contacts close. This sends a hardwired signal feed to the PCM. A brake pedal switch status message is then sent from the PCM to the ABS control module on the HS CAN powertrain systems bus. The ABS control module controls the braking force accordingly in conjunction with the HCU.
NOTE:
The brake pedal switch is also part of the speed control system.
