Anti-Lock Brake System (Abs) Control Module
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
The ABS control module and the HCU comprise a single unit and must not be separated.

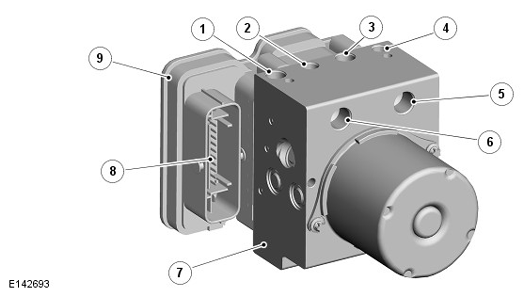

| ITEM | DESCRIPTION |
|---|---|
| 1 | Left front brake outlet port |
| 2 | Right rear brake outlet port |
| 3 | Left rear brake outlet port |
| 4 | Right front brake outlet port |
| 5 | Primary circuit inlet port |
| 6 | Secondary circuit inlet port |
| 7 | Hydraulic Control Unit (HCU) |
| 8 | Electrical connection |
| 9 | Anti-lock Brake System (ABS) control module |
The Anti-lock Brake System (ABS) control module is secured to a mounting bracket located between the front suspension tower and the secondary bulkhead on the opposite side to the hand of drive. The ABS module is mounted on the rear face of the Hydraulic Control Unit (HCU). The ABS control module uses the HCU to control all of the braking and stability functions by modulating hydraulic pressure to the individual wheel brakes.
If an ABS modulator fault is detected, the 'ABS FAULT' message appears in the IC message center and the amber warning indicator comes on.
