Component Location

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Right Hand Drive (RHD) illustration is shown. The Left Hand Drive (LHD) illustration is similar.

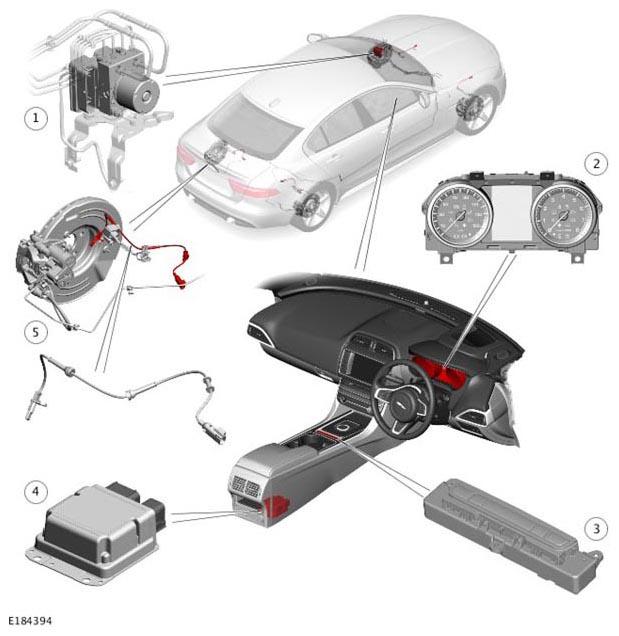

G11308719Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Anti-lock Brake System (ABS) control module
2 Instrument Cluster (IC)
3 JaguarDrive Switchpack (JDS)
4 Restraints Control Module (RCM)
5 Wheel speed sensor (4 off)
