Cylinder Compression Test - V6 S/C 3.0L Petrol (G1770729): Check

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  1. The vehicle battery must be in good condition and fully charged before carrying out this procedure.
  2. Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE:
  1. This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  2. This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. NOTE:
    1. A= dry cylinder compression test.
    2. B= wet cylinder compression test.

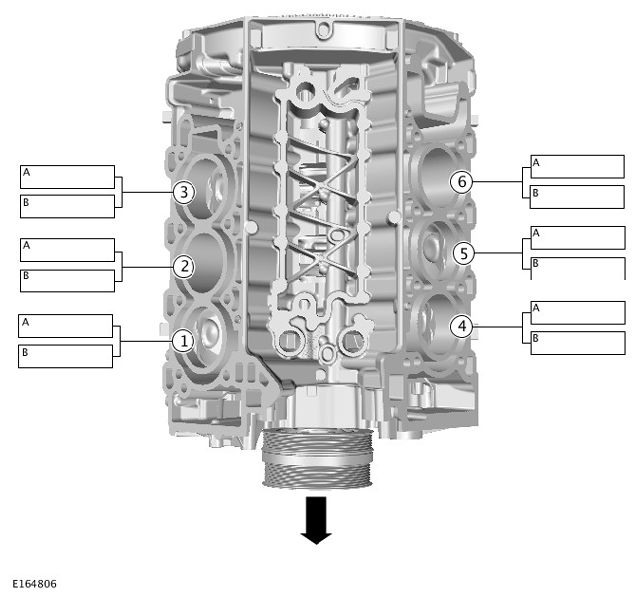

    G11284780Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Print illustration E164806 for use later in this procedure.

  2. Remove the spark plugs.

    Refer to: SPARK PLUGS

  3. CAUTION: Make sure the fuel injection system is disabled before carrying out a cylinder compression test. Failure to follow this step may result in damage to the vehicle.
    NOTE: This step must be preformed to the components on both sides of the vehicle.

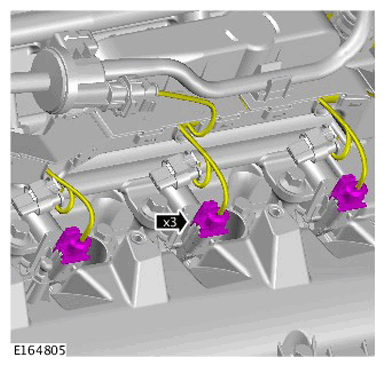

    G11284773Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the fuel injectors.

  4. Crank engine for approximately five seconds to remove any remaining fuel in the cylinders.
  5. NOTE: Dry cylinder compression test.

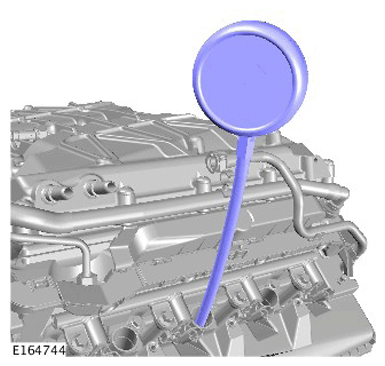

    G11284750Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the compression test gauge.

    General Equipment  : Compression tester and adapters

  6. NOTE: This step requires the aid of another technician.

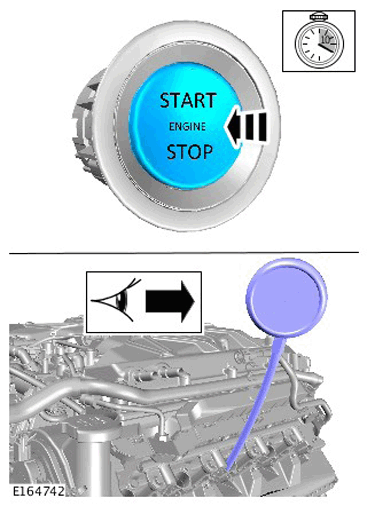

    G11284751Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Crank the engine for 10 seconds, use illustration E164806 to record the figure displayed on the compression test gauge.
    2. Make sure the pressure is released from the compression test gauge after each cylinder recording.
    3. Remove the compression test gauge. Repeat the procedure for the remaining cylinders.
  7. NOTE: Wet cylinder compression test.

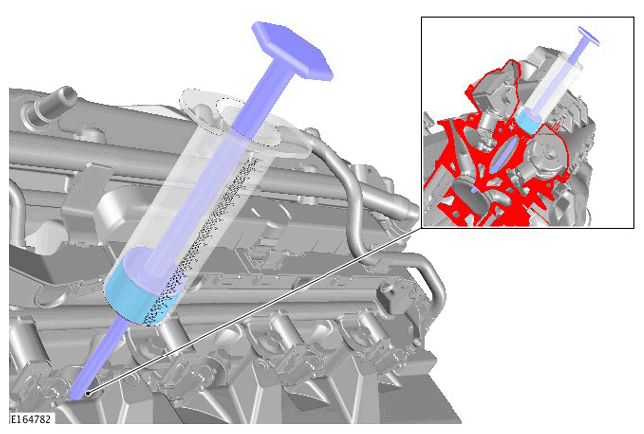

    G11284753Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using a suitable syringe add 10 ml of clean engine oil into the cylinder.

  8. G11284750Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the compression test gauge.

  9. NOTE: This step requires the aid of another technician.
    G11284751Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Crank the engine for 10 seconds, use illustration E164806 to record the figure displayed on the compression test gauge.
    2. Make sure the pressure is released from the compression test gauge after each cylinder recording.
    3. Remove the compression test gauge. Repeat the procedure for the remaining cylinders.
  10. With the compression test gauge removed from the engine, crank the engine for approximately 10 seconds to remove the engine oil from the cylinder.
  11. The minimum cylinder compression reading recorded must be within 10% of the maximum cylinder compression reading recorded. If the difference across the cylinders is higher than 10% please contact dealer technical support (DTS) for further assistance.
  12. Install the spark plugs.

    Refer to: SPARK PLUGS

  13. NOTE: This step must be preformed to the components on both sides of the vehicle.

    Connect the fuel injectors.

  14. Using approved diagnostic equipment, read and clear any diagnostic trouble codes (DTCs).
