Cylinder Block Distortion Measurement (G2463980): Check

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  1. This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  2. This procedure contains illustrations showing certain components removed to provide extra clarity.
  3. Step 17 applies to all engines.
  1. NOTE: INGENIUM I3 1.5L Petrol engines only.

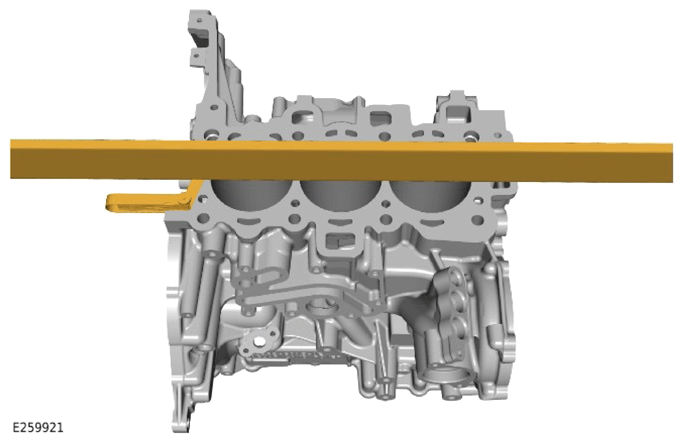

    G13894147Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Using a suitable metallic straight edge and feeler gauge, measure the cylinder block face longitudinally in the areas illustrated.
    2. Note the maximum value.
  2. NOTE:
    1. INGENIUM I3 1.5L Petrol engines only.
    2. The measurements must be taken at the section of the cylinder head bolt holes.

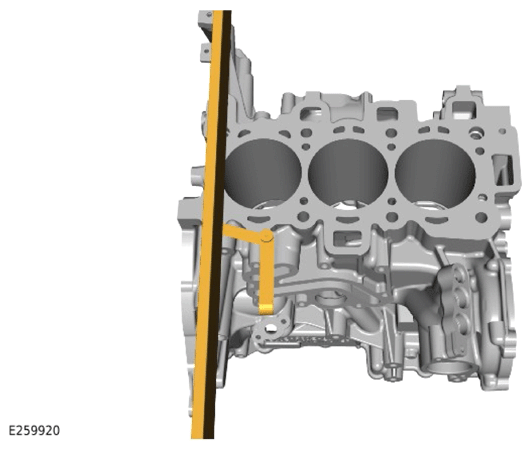

    G13894148Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Using a suitable metallic straight edge and feeler gauge, measure the cylinder block face transversely in the areas illustrated.
    2. Note the maximum value.
  3. NOTE: INGENIUM I4 2.0L Petrol engines only.

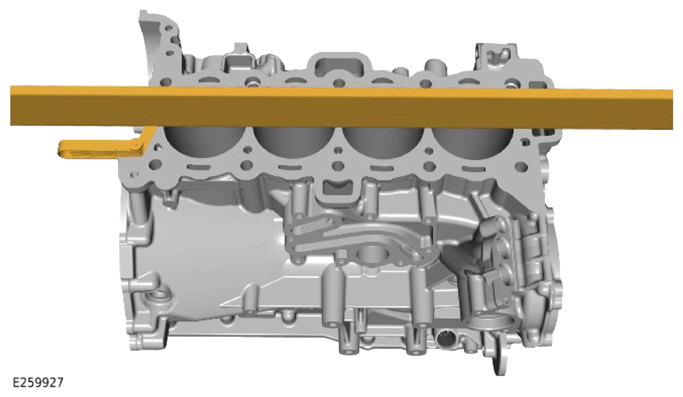

    G13894149Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Using a suitable metallic straight edge and feeler gauge, measure the cylinder block face longitudinally in the areas illustrated.
    2. Note the maximum value.
  4. NOTE:
    1. INGENIUM I4 2.0L Petrol engines only.
    2. The measurements must be taken at the section of the cylinder head bolt holes.

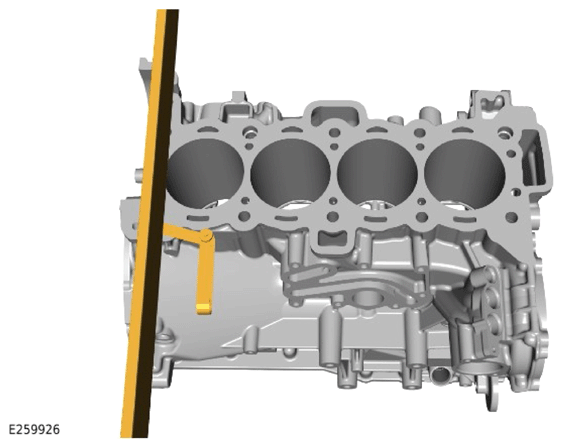

    G13894150Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Using a suitable metallic straight edge and feeler gauge, measure the cylinder block face transversely in the areas illustrated.
    2. Note the maximum value.
  5. NOTE: GTDi 2.0L Petrol engines only.

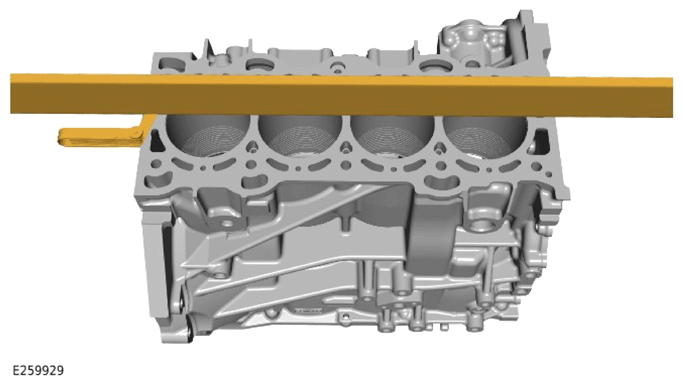

    G13894153Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Using a suitable metallic straight edge and feeler gauge, measure the cylinder block face longitudinally in the areas illustrated.
    2. Note the maximum value.
  6. NOTE:
    1. GTDi 2.0L Petrol engines only.
    2. The measurements must be taken at the section of the cylinder head bolt holes.

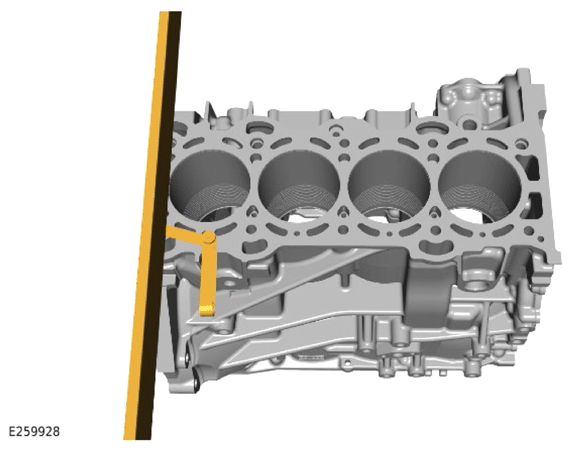

    G13894154Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Using a suitable metallic straight edge and feeler gauge, measure the cylinder block face transversely in the areas illustrated.
    2. Note the maximum value.
  7. NOTE: INGENIUM I4 2.0L Diesel engines only.

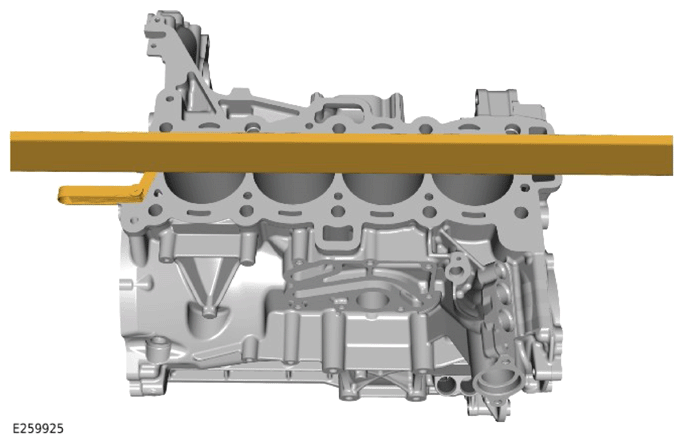

    G13894151Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Using a suitable metallic straight edge and feeler gauge, measure the cylinder block face longitudinally in the areas illustrated.
    2. Note the maximum value.
  8. NOTE:
    1. INGENIUM I4 2.0L Diesel engines only.
    2. The measurements must be taken at the section of the cylinder head bolt holes.

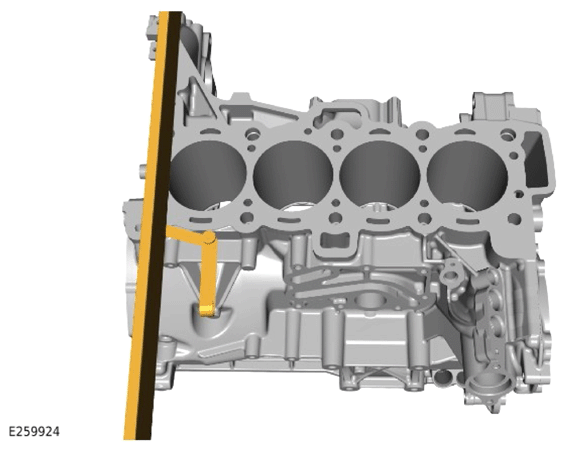

    G13894152Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Using a suitable metallic straight edge and feeler gauge, measure the cylinder block face transversely in the areas illustrated.
    2. Note the maximum value.
  9. NOTE:
    1. V6 S/C 3.0L Petrol engines only.
    2. Repeat this step for the other side.

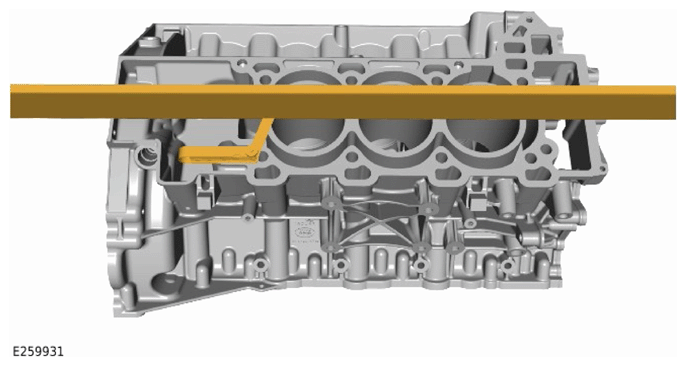

    G13878676Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Using a suitable metallic straight edge and feeler gauge, measure the cylinder block face longitudinally in the areas illustrated.
    2. Note the maximum value.
  10. NOTE:
    1. V6 S/C 3.0L Petrol engines only.
    2. The measurements must be taken at the section of the cylinder head bolt holes.
    3. Repeat this step for the other side.

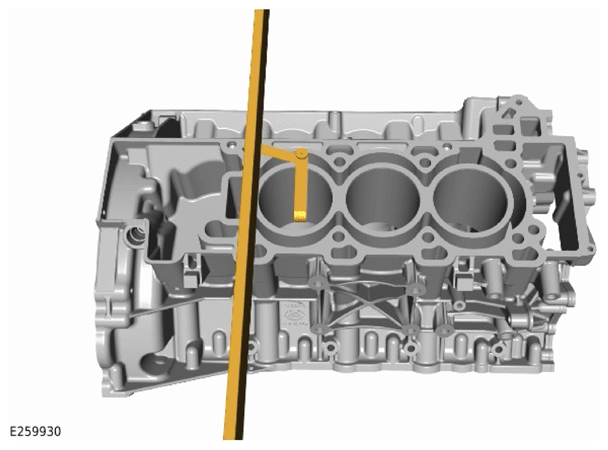

    G13878677Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Using a suitable metallic straight edge and feeler gauge, measure the cylinder block face transversely in the areas illustrated.
    2. Note the maximum value.
  11. NOTE:
    1. V8 S/C 5.0L Petrol engines only.
    2. Repeat this step for the other side.

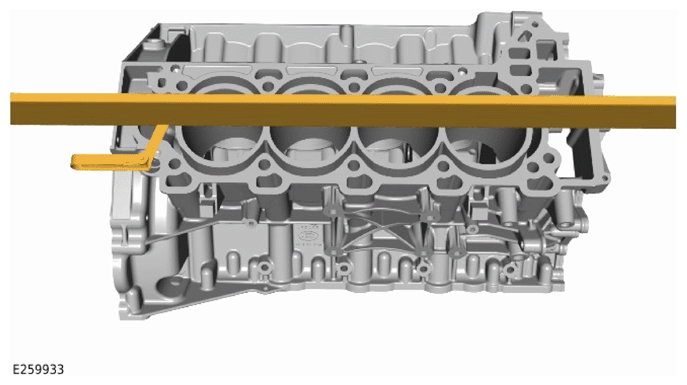

    G13878678Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Using a suitable metallic straight edge and feeler gauge, measure the cylinder block face longitudinally in the areas illustrated.
    2. Note the maximum value.
  12. NOTE:
    1. V8 S/C 5.0L Petrol engines only.
    2. The measurements must be taken at the section of the cylinder head bolt holes.
    3. Repeat this step for the other side.

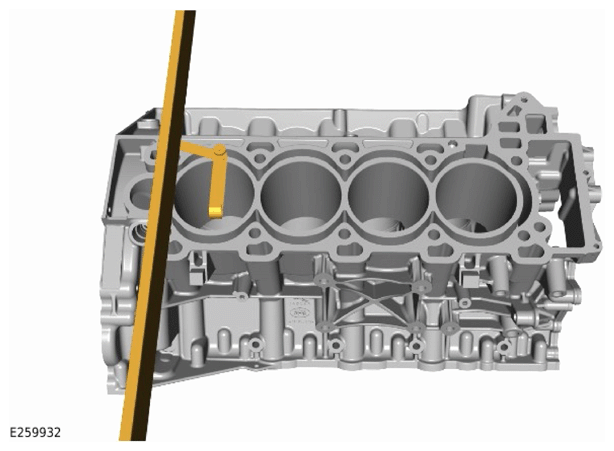

    G13878679Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Using a suitable metallic straight edge and feeler gauge, measure the cylinder block face transversely in the areas illustrated.
    2. Note the maximum value.
  13. NOTE:
    1. TDV6 3.0L Diesel engines only.
    2. Repeat this step for the other side.

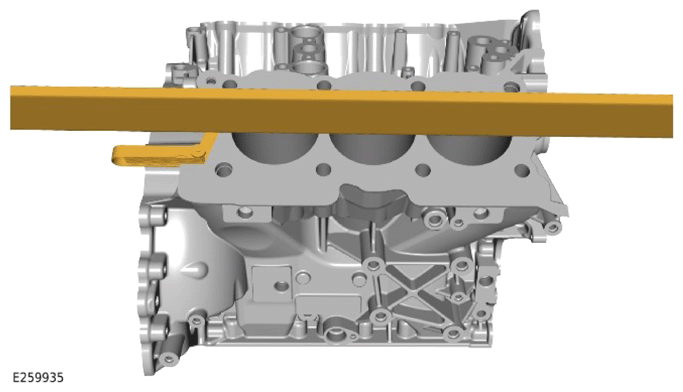

    G13905157Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Using a suitable metallic straight edge and feeler gauge, measure the cylinder block face longitudinally in the areas illustrated.
    2. Note the maximum value.
  14. NOTE:
    1. TDV6 3.0L Diesel engines only.
    2. The measurements must be taken at the section of the cylinder head bolt holes.
    3. Repeat this step for the other side.

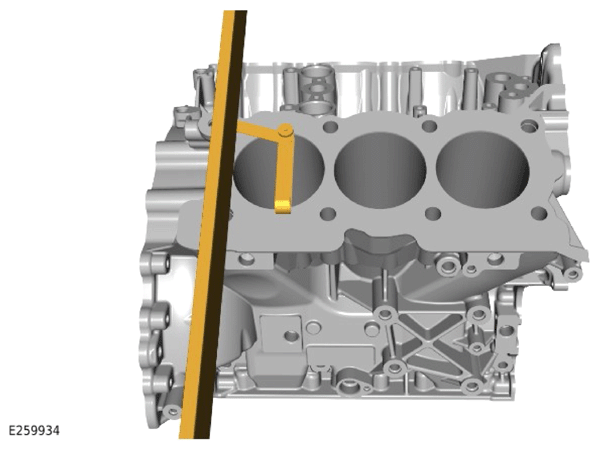

    G13905158Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Using a suitable metallic straight edge and feeler gauge, measure the cylinder block face transversely in the areas illustrated.
    2. Note the maximum value.
  15. NOTE:
    1. TDV8 4.4L Diesel engines only.
    2. Repeat this step for the other side.

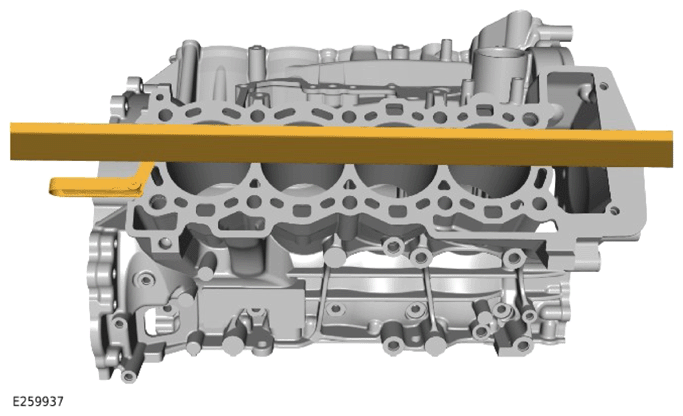

    G13905159Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Using a suitable metallic straight edge and feeler gauge, measure the cylinder block face longitudinally in the areas illustrated.
    2. Note the maximum value.
  16. NOTE:
    1. TDV8 4.4L Diesel engines only.
    2. The measurements must be taken at the section of the cylinder head bolt holes.
    3. Repeat this step for the other side.

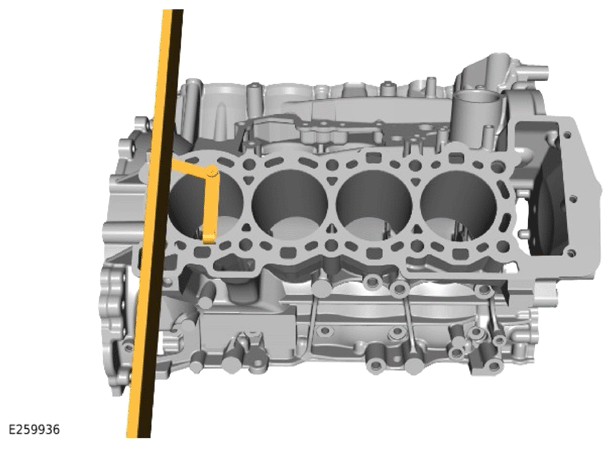

    G13905160Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Using a suitable metallic straight edge and feeler gauge, measure the cylinder block face transversely in the areas illustrated.
    2. Note the maximum value.
  17. If the cylinder block distortion measurements exceed the maximum value of 0.15 mm (0.006 in) the cylinder block must be replaced.
