Crankshaft End Play - INGENIUM I4 2.0L Diesel (G1868117)

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

For additional information, Refer to: CRANKSHAFT PULLEY
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

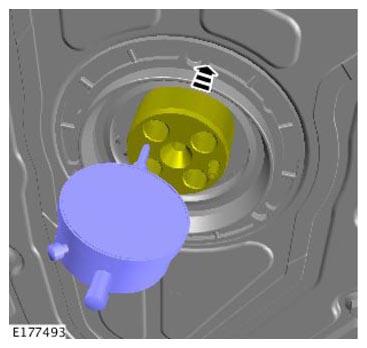

Move crankshaft rearwards, using a magnetic base position the Dial Test Indicator (DTI) gauge on end of crankshaft and zero dial test indicator.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

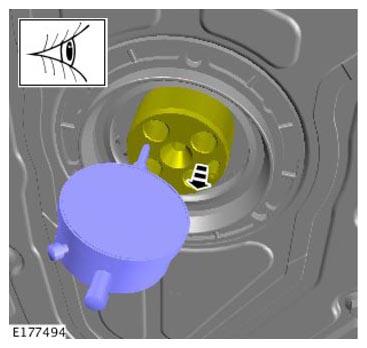

Move crankshaft forwards, measure and record end-float figure obtained.
1. If the value is out of the specification, install new thrust half rings to take up the end float and repeat the measurement.
2. Minimum crankshaft end-float 0.15MM.
3. Maximum crankshaft end float 0.35MM.
4. For additional information, Refer to: SPECIFICATIONS
