Power Brake Actuation (G2261936)
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
TORQUE SPECIFICATION
| |
DESCRIPTION |
NM |
LB-FT |
|
| 1 |

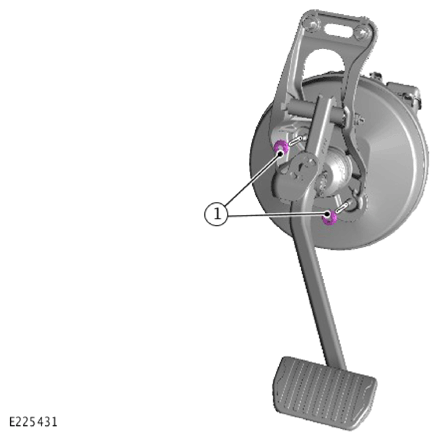

Brake booster retaining nuts - all vehicles |
25 |
18 |
- |
| 2 |

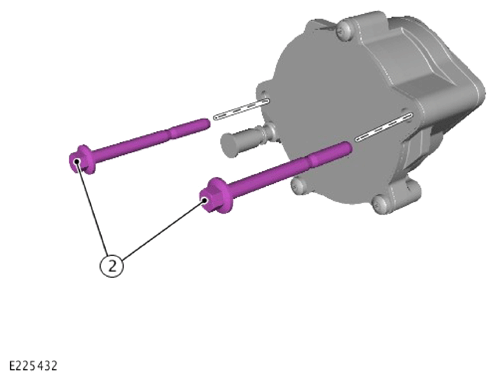

Brake vacuum pump bolts |
12 |
9 |
- |
