Brake Vacuum Pump - V8 S/C 5.0L Petrol, Project 8 (G2249549): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Drain the engine oil.
Refer to: ENGINE OIL VACUUM DRAINING AND FILLING
Remove the undershield.
Refer to: ENGINE UNDERSHIELD - PROJECT 8
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

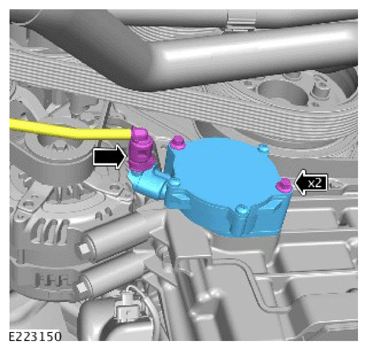

- Disconnect the vacuum pipe.
- Remove the 2 M6 x 65 mm bolts.
- Remove the brake vacuum pump.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

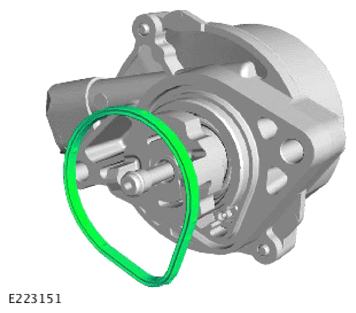

Remove and discard the vacuum pump seal.
