Brake Booster - Project 8 (G2231255): Description: Notes
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

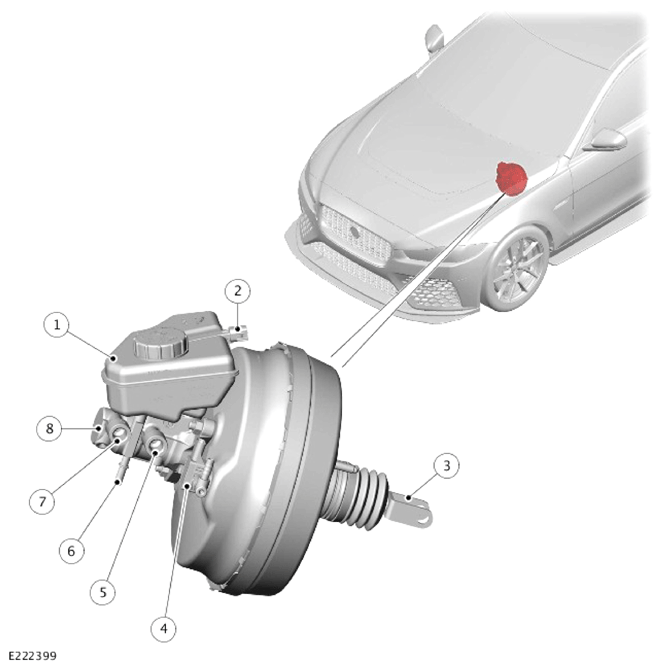

| ITEM |
DESCRIPTION |
| 1 |
Brake fluid reservoir |
| 2 |
Brake fluid level sensor electrical connector |
| 3 |
Actuator rod |
| 4 |
Brake vacuum sensor |
| 5 |
Primary circuit outlet port |
| 6 |
Service connector |
| 7 |
Secondary circuit outlet port |
| 8 |
Brake master cylinder |
