Brake Vacuum Sensor

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

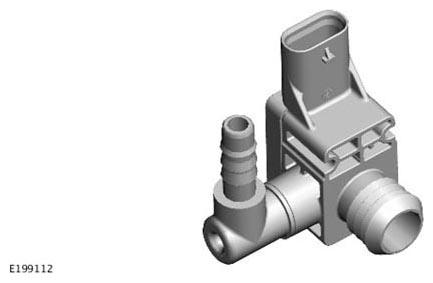

G11308707Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

On vehicles with the auto stop/start system, the brake vacuum pipes incorporate a brake vacuum sensor with an integral check valve. The brake vacuum sensor monitors vacuum reserves in the brake booster and is hardwired to the Powertrain Control Module (PCM).
