Torque Specification
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Numbers with green background are single use components.
COMPONENT TORQUE LOCATION
NOTE:
A = Refer to procedure for correct torque sequence
.
TORQUE SPECIFICATION
| DESCRIPTION | NM | LB-FT | LB-IN | |||
|---|---|---|---|---|---|---|

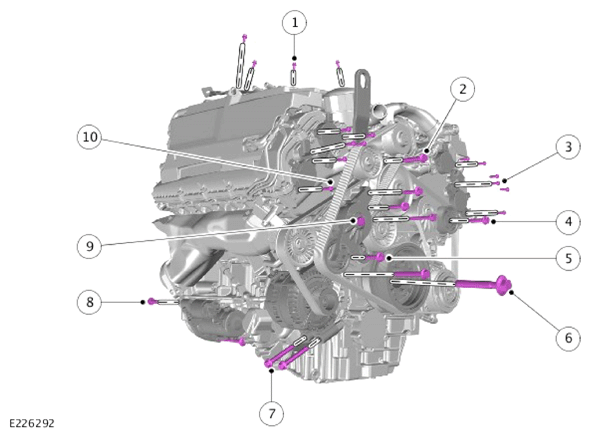

| 1 | Engine cover mounting bolts | 10 | 7 | - | ||
| 2 | Lifting eye bolts | Stage 1: 25 | Stage 2: 90° | Stage 1: 18 | Stage 2: 90° | - |
| 3 | Camshaft position (CMP) sensor retaining bolts | 10 | 7 | - | ||
| 4 | Secondary drive belt idler retaining bolts | 40 | 30 | - | ||
| 5 | Supercharger belt idler/tensioner bracket retaining bolts | 25 | 18 | - | ||
| 6 | Crankshaft damper pulley retaining left threaded bolt | Stage 1: 200 | Stage 2: 270° | Stage 1: 148 | Stage 2: 270° | - |
| 7 | Generator retaining bolts | 48 | 35 | - | ||
| 8 | Starter motor retaining bolts | 48 | 35 | - | ||
| 9 | Accessory drive belt tensioner retaining bolt | 40 | 30 | - | ||
| 10 | Variable Camshaft Timing (VCT) actuator retaining bolts | 10 | 7 | - | ||

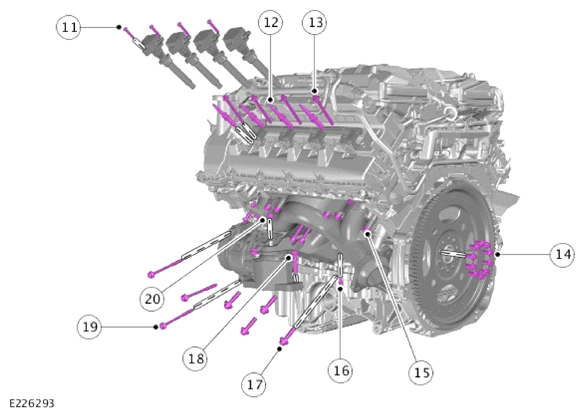

| 11 | Ignition coil retaining bolts | 8 | - | 71 | ||
| 12 | Spark plugs | 20 | 15 | - | ||
| 13 | Fuel rail retaining bolts | A** | - | - | ||
| 14 | Flexplate retaining bolts | Stage 1: 45 | Stage 2: 90° | Stage 1: 33 | Stage 2: 90° | - |
| 15 | Exhaust manifold retaining bolts | A** | - | - | ||
| 16 | Exhaust manifold heat shield retaining bolts | A** | - | - | ||
| 17 | Engine mounting bracket to engine retaining bolts | 60 | 44 | - | ||
| 18 | Engine mounting to subframe retaining nuts | 48 | 35 | - | ||
| 19 | Air conditioning compressor retaining bolts | 25 | 18 | - | ||
| 20 | Engine mounting to engine mounting bracket retaining nuts | 60 | 44 | - | ||

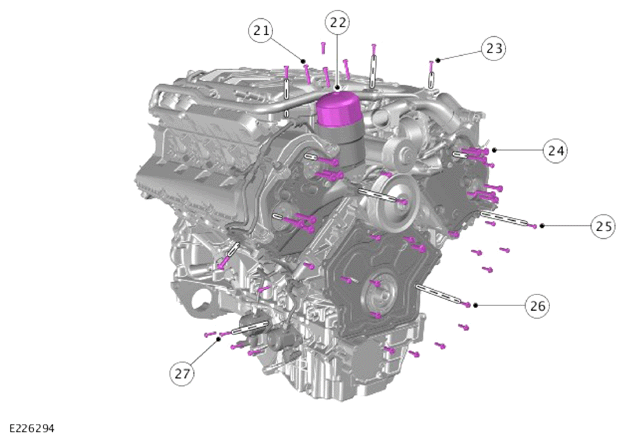

| 21 | Oil filter housing assembly retaining bolts | 12 | 9 | - | ||
| 22 | Oil filter cap | 28 | 21 | - | ||
| 23 | High pressure fuel pipe retaining bolts | A** | - | - | ||
| 24 | VCT to camshaft retaining bolts | 32 | 24 | - | ||
| 25 | Front upper timing cover retaining bolts | 12 | 9 | - | ||
| 26 | Front lower timing cover retaining bolts | A** | - | - | ||
| 27 | High pressure fuel pump retaining bolts | 12 | 9 | - | ||

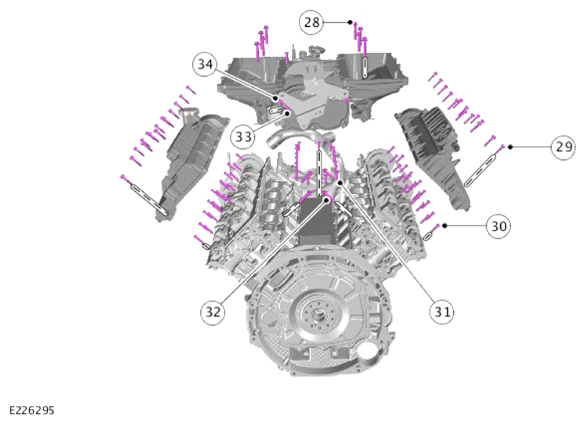

| 28 | Intake manifold retaining bolts | 25 | 18 | - | ||
| 29 | Camshaft cover retaining bolts | 13 | 10 | - | ||
| 30 | Camshaft bearing caps retaining bolts | 11 | 8 | - | ||
| 31 | Oil Cooler retaining bolts | 13 | 10 | - | ||
| 32 | Knock sensor retaining bolts | 20 | 14 | - | ||
| 33 | Manifold Absolute Pressure and Temperature (MAPT) sensor retaining bolts | 5 | - | 44 | ||
| 34 | Engine wiring harness bracket retaining bolts | 10 | 7 | - | ||

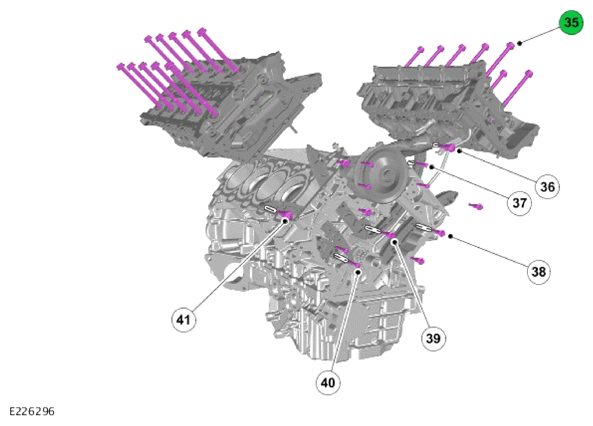

| 35 | Cylinder head retaining bolts | A** | - | - | ||
| 36 | Auxiliary chain tensioner guide retaining bolts | 21 | 15 | - | ||
| 37 | Coolant pump retaining bolts | 12 | 9 | - | ||
| 38 | Auxiliary chain fixed guide retaining bolt | 12 | 9 | - | ||
| 39 | Primary timing chain fixed guide retaining bolts | 12 | 9 | - | ||
| 40 | Primary timing chain tensioner retaining bolts | 12 | 9 | - | ||
| 41 | Primary timing chain tensioner guide blade retaining bolts | 25 | 18 | - | ||

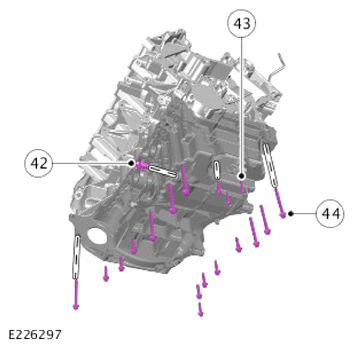

| 42 | Oil pan drain plug | 23 | 17 | - | ||
| 43 | Engine oil level (EOL) sensor retaining bolt | 12 | 9 | - | ||
| 44 | Oil pan retaining bolts | 25 | 18 | - | ||

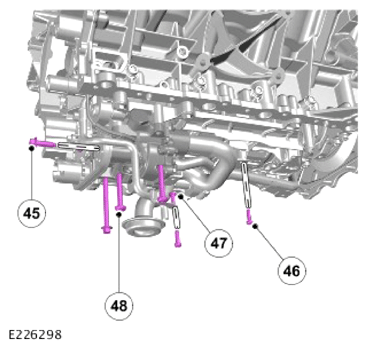

| 45 | Oil pump sprocket retaining bolt | 21 | 15 | - | ||
| 46 | Pick-up pipe to oil pump retaining bolts | 12 | 9 | - | ||
| 47 | Oil transfer tube to oil pan retaining bolts | 11 | 8 | - | ||
| 48 | Oil pump to engine block retaining bolts | 25 | 18 | - | ||

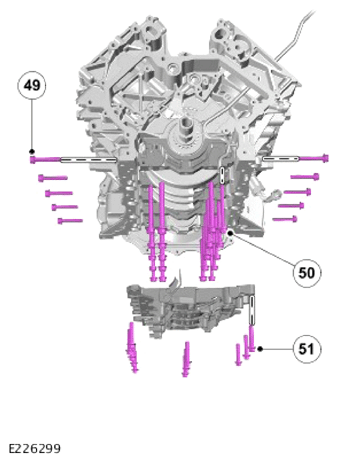

| 49 | Main bearing cap M8 bolts | A** | A** | - | ||
| 50 | Main bearing cap M10 bolts | A** | A** | - | ||
| 51 | Windage tray retaining bolts | 25 | 18 | - | ||

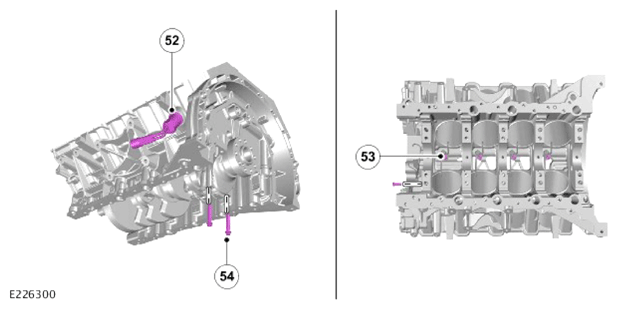

| 52 | Engine cooling system heater | 50 | 37 | - | ||
| 53 | Piston cooling jet retaining bolts | 12 | 9 | - | ||
| 54 | Connecting Rod bolts | Stage 1: 10 | Stage 2: 50 | Stage 1: 7 | Stage 2: 37 | - |

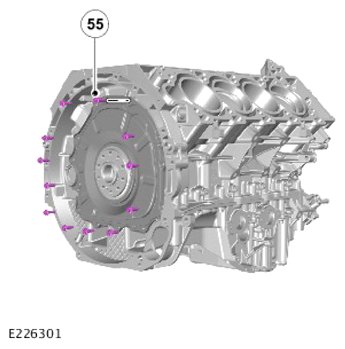

| 55 | Engine rear cover retaining bolts | A** | - | - | ||
