Timing Drive Components (G2244093): Installation

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the sprocket.
- Make sure that 2 new friction washers are installed.
Renew Part: Crankshaft sprocket friction washer Quantity: 2 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the timing chain fixed guides.
- Install and tighten the 6 bolts.
Torque: 12Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the special tool to each camshaft.
Special Tool(s): 303-1452
- Install and tighten the 6 special tool bolts.
  Torque: 10Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Carefully rotate the camshafts into the position illustrated.
CAUTION:
- Do not overturn the camshafts.
- Tighten the special tool nuts finger tight. Failure to follow this instruction may result in damage to the components.
NOTE: Repeat this step for both camshafts.

multimedia:A supplement to the article is available.
- Install the special tool.
Special Tool(s): 303-1452
- Carefully rotate the camshaft clockwise then anti-clockwise whilst tightening the special tool locking nuts until the camshafts do not rotate anymore.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 6 special tool bolts.
- Remove the special tool from each camshaft.
Special Tool(s): 303-1452
CAUTION:
- Do not allow the camshaft to rotate.
- If the variable valve timing units are knocked or dropped then new components must be installed.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the timing chain and the 2 variable valve timing units.
NOTE: Install the bolts finger tight at this stage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and tighten the 6 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Make sure that all the timing chain alignment marks are in the positions as illustrated.
CAUTION:
- If the vehicle is fitted with components shown below in section 1 of the illustration, these must be replaced with components shown below in section (2).
- Do not attempt to install the components shown below in section 1 of the illustration, as damage to the engine may occur.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Using the illustration, identify which timing chain tensioner and guide is currently fitted to the vehicle.
- Make sure the vehicle is assembled using components shown above in section (2) of the illustration only.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the guide rail.
- Install and tighten the bolt.
  Torque: 25Nm
CAUTION:
- If the vehicle is Installed with components shown above in section 1 of the illustration, these must be replaced with components shown above in section (2).
- Do not attempt to install the components shown above in section 1 of the illustration, as damage to the engine may occur.
- Before installing the timing chain tensioners, use the illustration shown above to identify which timing chain tensioner is currently fitted to the vehicle.
- Make sure the vehicle is assembled using components shown above in section (2) of the illustration only.
- If a new timing chain tensioner is installed, do not deploy the tensioner pin and proceed to the next step.
- If the tensioner to be installed has previously been deployed, make sure the attached illustration is followed to make sure the tensioner is set correctly, failure to do this may result in damage to the engine.
CAUTION: Do not release the timing chain tensioner locking pin at this stage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the timing chain tensioner.
- Install and tighten the 2 bolts.
  Torque: 12Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Apply and maintain tension on the timing chain as illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the timing chain tensioner pin.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The timing chain tensioner piston should apply tension to the timing chain guide in the position as illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The timing chain tensioner must maintain tension on the chain guide. If the piston can be pushed back so the chain guide makes contact with the body of the tensioner, the incorrect tensioner has been installed. Repeat the steps 12-17.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the special tool to each camshaft.
  Special Tool(s): 303-1452
- Install and tighten the 6 special tool bolts.
  Torque: 10Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Carefully rotate the camshafts into the position illustrated.
CAUTION:
- Do not overturn the camshafts.
- Tighten the special tool nuts finger tight. Failure to follow this instruction may result in damage to the components.
NOTE: Repeat this step for both camshafts.

multimedia:A supplement to the article is available.
- Install the special tool.
  Special Tool(s): 303-1452
- Carefully rotate the camshaft clockwise then anti-clockwise whilst tightening the special tool locking nuts until the camshafts do not rotate anymore.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 6 special tool bolts.
- Remove the special tool from each camshaft.
  Special Tool(s): 303-1452
CAUTION:
- Do not allow the camshaft to rotate.
- If the variable valve timing units are knocked or dropped then new components must be installed.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the timing chain and the 2 variable valve timing units.
NOTE: Install the bolts finger tight at this stage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and tighten the 6 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Make sure that all the timing chain alignment marks are in the positions as illustrated.
CAUTION:
- If the vehicle is fitted with components shown below in section 1 of the illustration, these must be replaced with components shown below in section (2).
- Do not attempt to install the components shown below in section 1 of the illustration, as damage to the engine may occur.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Using the illustration, identify which timing chain tensioner and guide is currently fitted to the vehicle.
- Make sure the vehicle is assembled using components shown above in section (2) of the illustration only.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the guide rail.
- Install and tighten the bolt.
  Torque: 25Nm
CAUTION:
- If the vehicle is Installed with components shown above in section 1 of the illustration, these must be replaced with components shown above in section (2).
- Do not attempt to install the components shown above in section 1 of the illustration, as damage to the engine may occur.
- Before installing the timing chain tensioners, use the illustration shown above to identify which timing chain tensioner is currently fitted to the vehicle.
- Make sure the vehicle is assembled using components shown above in section (2) of the illustration only.
- If a new timing chain tensioner is installed, do not deploy the tensioner pin and proceed to the next step.
- If the tensioner to be installed has previously been deployed, make sure the attached illustration is followed to make sure the tensioner is set correctly, failure to do this may result in damage to the engine.
CAUTION: Do not release the timing chain tensioner locking pin at this stage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the timing chain tensioner.
- Install and tighten the 2 bolts.
  Torque: 12Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Apply and maintain tension on the timing chain as illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the timing chain tensioner pin.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The timing chain tensioner piston should apply tension to the timing chain guide in the position as illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The timing chain tensioner must maintain tension on the chain guide. If the piston can be pushed back so the chain guide contacts with the body of the tensioner, the incorrect tensioner has been installed. Repeat the steps 27-32.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

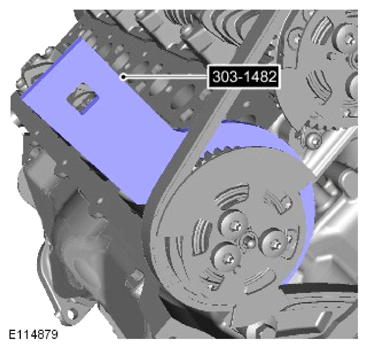

Install the special tool.

Special Tool(s): 303-1482
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the torque wrench to the special tool.
- Set the torque wrench to 35 Nm.
- Make sure that the torque wrench is aligned with the special tool as illustrated in the graphic.
CAUTION: Make sure that the torque wrench and the special tool does not move whilst tightening the variable valve timing bolts.

NOTE: Make sure to tighten the exhaust variable valve timing unit bolts first.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fully tighten the 6 variable valve timing unit bolts.

Torque: 32Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the oil drain pipe.
- Install and tighten the bolt.
  Torque: 10Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.

Special Tool(s): 303-1445
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the special tool.

Special Tool(s): 303-1482
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the torque wrench to the special tool.
- Set the torque wrench to 35 Nm.
- Make sure that the torque wrench is aligned with the special tool as illustrated in the graphic.
CAUTION: Make sure that the torque wrench and the special tool does not move whilst tightening the variable valve timing bolts.

NOTE: Make sure to tighten the exhaust variable valve timing unit bolts first.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fully tighten the 6 variable valve timing unit bolts.

Torque: 32Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.

Special Tool(s): 303-1445
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the special tool bolt.
- Remove the special tool.
  Special Tool(s): JLR-303-1303
CAUTION: The M16 washer must be used to prevent damage to the crankshaft on installation.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install and tighten the crankshaft pulley bolt.

Torque: 20Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 special tool bolts.
- Remove the special tool.
  Special Tool(s): JLR-303-1304
CAUTION: Only rotate the crankshaft clockwise.

Rotate the engine 2 complete turns clockwise.
CAUTION: Only rotate the crankshaft clockwise.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the special tool.
  Special Tool(s): JLR-303-1303
- Install and tighten the special tool bolt.
  Torque: 8Nm
CAUTION: If the special tool cannot be installed, the timing chain installation steps must be repeated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the special tool. If the special tool cannot be installed, remove both timing chains and repeat the process from step 3 of the installation until the special tool is installed correctly.

Special Tool(s): 303-1445
CAUTION: If the special tool cannot be installed, the timing chain installation steps must be repeated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the special tool. If the special tool cannot be installed, remove both timing chains and repeat the process from step 3 of the installation until the special tool is installed correctly.

Special Tool(s): 303-1445
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.

Special Tool(s): 303-1445
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.

Special Tool(s): 303-1445
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the special tool bolt.
- Remove the special tool.
  Special Tool(s): JLR-303-1303
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the Crankshaft Position (CKP) sensor.
- Install and tighten the bolt.
  Torque: 10Nm
- Connect the CKP sensor electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the special tool.
  Special Tool(s): JLR-303-1304
- Install and tighten the 2 special tool bolts.
  Torque: 10Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the crankshaft bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 special tool bolts.
- Remove the special tool.
  Special Tool(s): JLR-303-1304
Install the timing cover.
Refer to: TIMING COVER .
Install the starter motor.
Refer to: STARTER MOTOR .
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
