Right Exhaust Manifold (G2244082): Installation

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:
- Make sure that the mating faces are clean and free of foreign material.
- Make sure the anti-seize compound does not contact the HO2S tip.
NOTE: If the original sensor is to be installed, apply lubricant meeting specification ESE-M12A4-A to the thread of the sensor.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Special Tool(s) : 310-121

Torque : 45Nm
NOTE: Install a new gasket.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

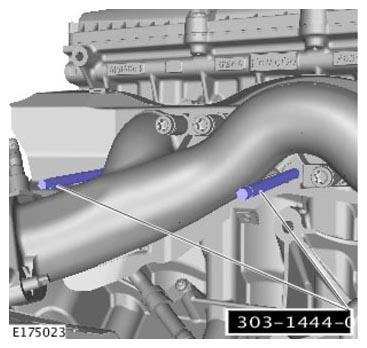

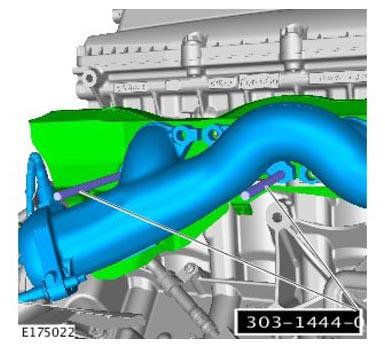

Install the special tools.

Special Tool(s) : 303-1444-01
NOTE: If a new cylinder head is installed use the special tools in the illustration.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the special tools.

Special Tool(s) : 303-1444-02

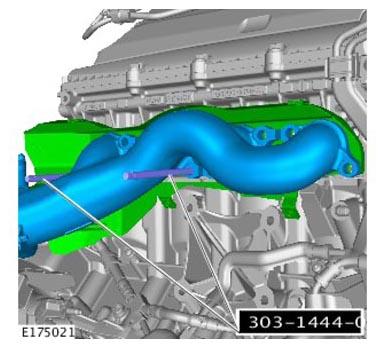

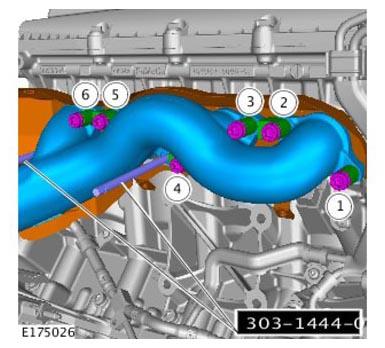

CAUTION: Make sure that new bolts are installed.

NOTE: Install the spacers in the noted position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the Special Tool(s) : JLR-303-1652, 303-1444-01

Renew Part: Exhaust manifold bolts Quantity: 6 .

Torque : 10Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

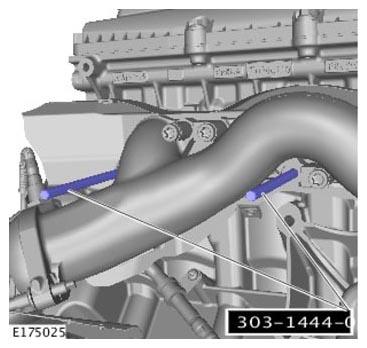

Remove the special tools.

Special Tool(s) : 303-1444-01
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tools.

Special Tool(s) : 303-1444-02
CAUTION: Make sure that new bolts are installed.

NOTE: Install the spacers in the noted position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 10Nm

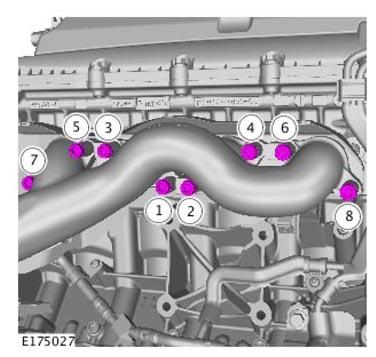

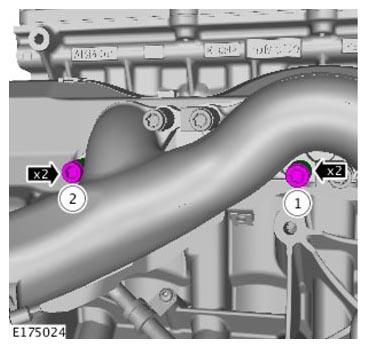

CAUTION: Tighten the bolts in the sequence shown below.

Fig 1: Exhaust Manifold Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the Special Tool(s) : JLR-303-1652

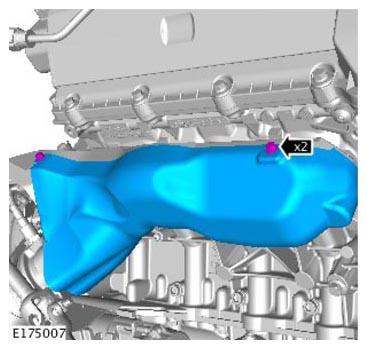

Torque : 18Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

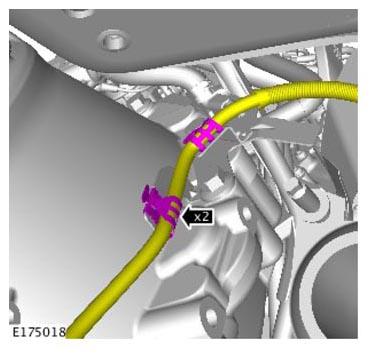

Torque : 3Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

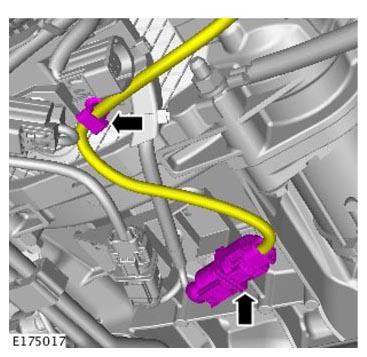

Torque : 3Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 25Nm
Refer to: RIGHT ENGINE MOUNT .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Refer to: RIGHT CATALYTIC CONVERTER - AWD .
Connect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
