Right Engine Mount (G2244078): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
Remove the transmission undershield.
Refer to: TRANSMISSION UNDERSHIELD - PROJECT 8 .
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD - PROJECT 8 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

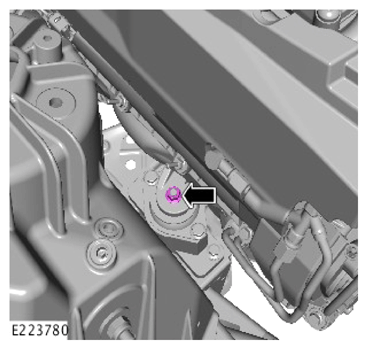

Remove the right engine mount nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

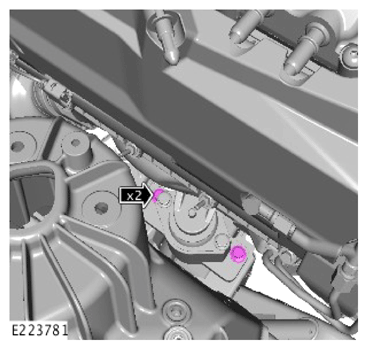

Remove the 2 engine mount bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

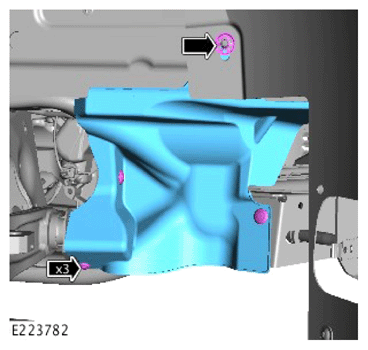

Remove the front lower wheel arch liner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the left engine mount nut.
CAUTION: Use a wooden block to protect the oil pan when supporting the engine.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using the suitable hydraulic jack, support the engine.

General Equipment : Transmission jack
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

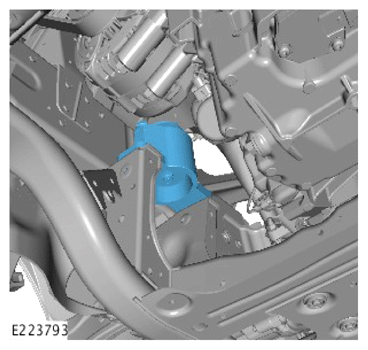

Remove the right engine mount.
