Right Cylinder Head (G2244074): Installation

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: An acceptable flatness of the cylinder head is 0.1mm.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Check cylinder head face for distortion, across the center and from corner to corner.
WARNING: Make sure care is taken when handling the cylinder head gasket.
CAUTION:
- The head gasket must be installed over the cylinder block dowels.
- Make sure that the mating faces are clean and free of foreign material.
NOTE: Install a new cylinder head gasket.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Cylinder head gasket Quantity: 1 .
CAUTION: Make sure that new cylinder head bolts are installed.

NOTE: Tighten the bolts in the indicated sequence.

Fig 1: Cylinder Head Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the Special Tool(s) : JLR-303-1653, 303-1492

Renew Part: Cylinder head bolts Quantity: 10 .

Torque : 20Nm
NOTE: Tighten the bolts in the indicated sequence.

Fig 2: Cylinder Head Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Special Tool(s) : 303-1492

Torque : 35Nm
NOTE: Slacken the bolts in the sequence shown below.

Fig 3: Cylinder Head Bolts Loosening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Special Tool(s) : 303-1492
NOTE: Tighten the bolts in the indicated sequence.

Fig 4: Cylinder Head Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Special Tool(s) : 303-1492

Torque : 35Nm
NOTE: Tighten the bolts in the indicated sequence.

Fig 5: Cylinder Head Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the bolts 1 to 10, a further 90 degrees.

Special Tool(s) : 303-1492
NOTE: Tighten the bolts in the indicated sequence.

Fig 6: Cylinder Head Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the bolts 1 to 10, a further 120 degrees.

Special Tool(s) : 303-1492
Remove the special tools.
Remove the Special Tool(s) : JLR-303-1653, 303-1492

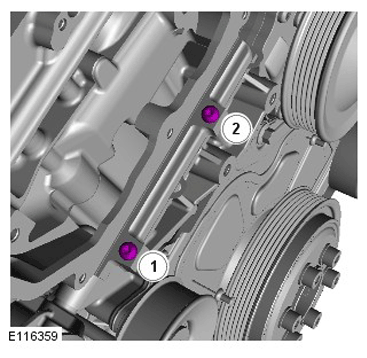

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 25Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 12Nm
CAUTION:
- If a new cylinder head has been installed then new tappets must be installed.
- If the cylinder head is being removed without a new component being installed, the tappets must be installed in their original positions.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Lubricate the valve tappets with clean engine oil.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 25Nm
NOTE: Install a new gasket.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Oil filter housing gasket Quantity: 1 .

Torque : 12Nm
CAUTION: A new O-ring seal is to be installed.

NOTE: Install a new engine oil filter.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Oil filter O-ring seal(s) Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 10Nm
CAUTION: Install the new seals.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Water outlet connection O-ring seals Quantity: 1 .

Torque : 10Nm

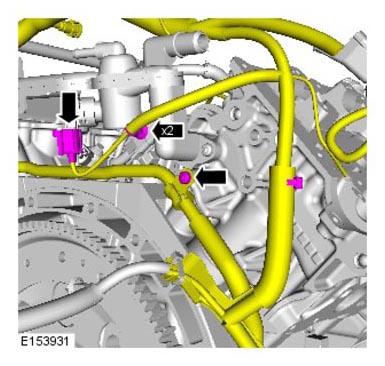

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 20Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 20Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 12Nm
Refer to: RIGHT CAMSHAFT .
Refer to: RIGHT EXHAUST MANIFOLD .
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
