Oil Pan Extension (G2244090): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: This procedure involves fuel handling. Be prepared for fuel spillage at all times and always observe fuel handling precautions. Failure to follow these instructions may result in personal injury.

NOTE:

Some components shown below removed for clarity.
Removal steps in this procedure may contain installation details.

Disconnect the battery ground cable
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.

Refer to: LIFTING .
Refer to: ENGINE OIL VACUUM DRAINING AND FILLING .
Refer to: ENGINE - AWD .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the special tool.

Special Tool(s) : JLR-303-1304
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the special tool.

Special Tool(s) : 303-1438, 303-1437
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Special Tool(s) : 303-1438, 303-1437

Torque : 25Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Support the special tool using a suitable vehicle stand.

Special Tool(s) : 303-1438, 303-1437
CAUTION: The crankshaft pulley bolt must be removed clockwise. Failure to follow this instruction may result in damage to the crankshaft.

NOTE: The crankshaft pulley bolt will be very tight.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Special Tool(s) : 303-1438, 303-1437
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Special Tool(s) : 303-1438, 303-1437
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tools.

Special Tool(s) : 303-1438, 303-1437
NOTE: Discard the bolt after removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: If the crankshaft damper is fitted with an early RH thread crankshaft bolt then the pulley can be removed with a standard puller.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the special tool.

Special Tool(s) : 303-1440
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the special tool.

Special Tool(s) : 303-1441
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the special tool.

Special Tool(s) : 303-1439

Torque : 25Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Special Tool(s) : 303-1439, 303-1440
CAUTION: Discard the friction washer after removing the crankshaft pulley.

NOTE: Make sure to clean the threads in the end of the crankshaft and that the crank nose is free of any foreign materials.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Special Tool(s) : 303-1439
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Special Tool(s) : 303-1440, 303-1441
CAUTION:
- The bolts can only be used 3 times, mark the bolts with a center punch. If 2 punch marks are visible, discard the bolts.
- Make sure that no components fall off during removal.
NOTE: Make sure that the crankshaft is not rotated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Special Tool(s) : JLR-303-1304
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

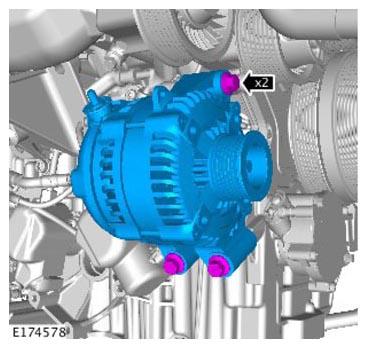

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

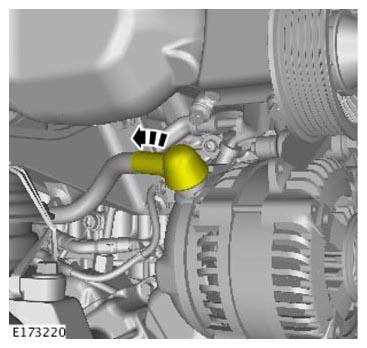

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION:
- Be prepared to collect escaping fuel.
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION:
- Be prepared to collect escaping fuel.
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION:
- Be prepared to collect escaping fuel.
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION:
- Be prepared to collect escaping fuel.
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
- Discard the fuel pipes.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Be prepared to collect escaping oil.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Be prepared to collect escaping oil.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Discard the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

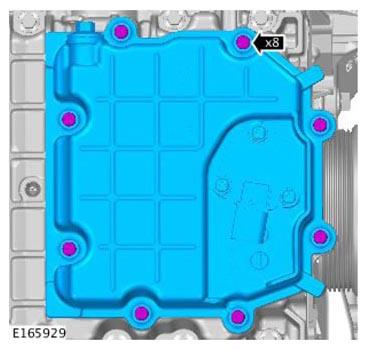

NOTE: Make sure to use the aluminum lug provided on the oil pan extension to lever against.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
