Oil Cooler (G2244086): Installation

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure that these components are installed to the noted removal position.
- Install 2 new coolant pipe connector O-ring seals.
  Renew Part: Oil cooler O-ring seals Quantity: 2 .
- Install the coolant pipe connector.
CAUTION: Make sure that the area around the component is clean and free of foreign material.
- Install a new oil cooler gasket.
  Renew Part: Oil cooler gasket Quantity: 1 .
- Install the oil cooler.
- Install and tighten the 18 bolts finger tight only at this stage.
- Connect the coolant pipe connector.

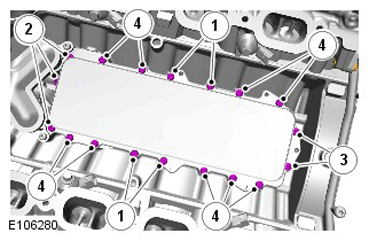

Fig 1: Oil Cooler Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the 18 bolts following the illustrated sequence.

Torque : 13Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Secure the 5 wiring harness clips.

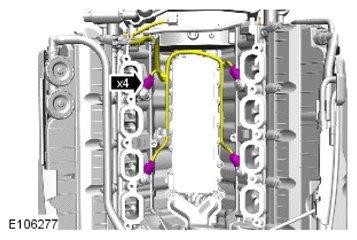

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Connect the 4 electrical connectors.
Install the supercharger.
Refer to: SUPERCHARGER .
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
