Lower Timing Cover (G2244085): Installation

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

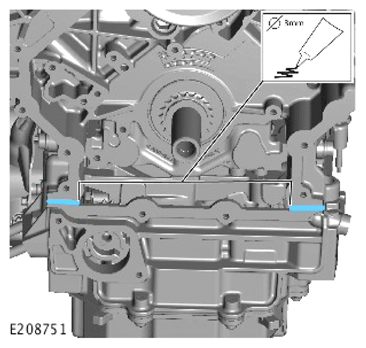

Apply RTV sealant WSE-M4G323-A6 (Loctite 5901G) to the areas shown above, and tighten the bolts within 7 minutes.
CAUTION: Make sure that the mating faces are clean and free of foreign material.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

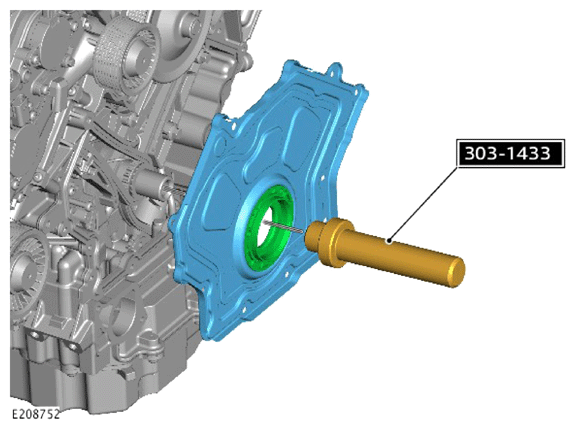

Install the timing cover using the alignment tool.

Special Tool(s) : 303-1433

Renew Part: Crankshaft front oil seal Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

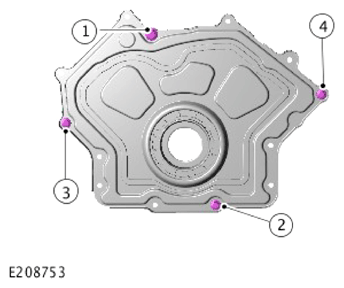

Install the 4 primary retaining bolts.

Torque

M6: 10Nm

M10: 48Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

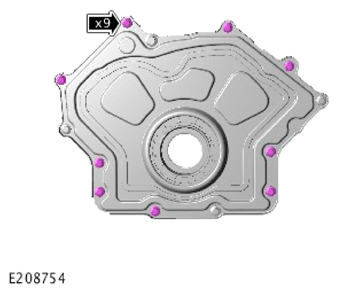

Install the 9 retaining bolts.

Torque : 12Nm
Install the brake vacuum pump.
Refer to: BRAKE VACUUM PUMP - V8 S/C 5.0L PETROL, PROJECT 8 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

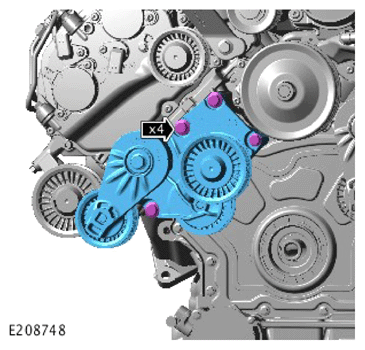

Install the accessory drive belt pulley and bracket assembly.

Torque : 25Nm
CAUTION: Install all the bolts finger tight before final tightening.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

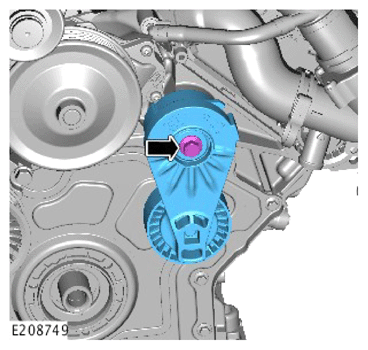

Install the Front End Accessory Drive (FEAD) tensioner.

Torque : 40Nm
Install the crankshaft damper.
Refer to: CRANKSHAFT PULLEY .
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
