Left Exhaust Manifold (G2244080): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe due care when working near a hot exhaust system.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
Remove the left catalytic converter.
Refer to: LEFT CATALYTIC CONVERTER .
Remove the left engine mount.
Refer to: LEFT ENGINE MOUNT .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

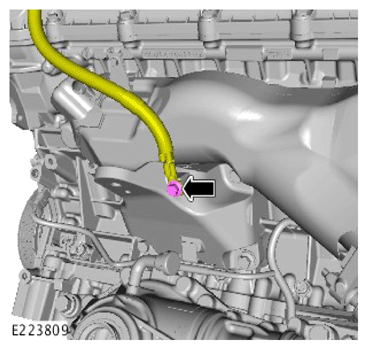

Release the engine ground cable.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

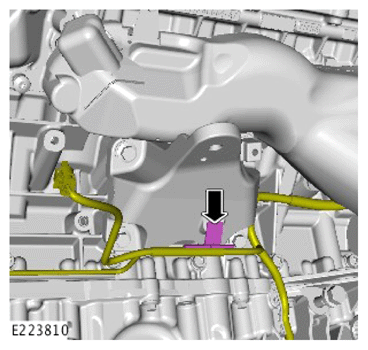

Release the engine wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

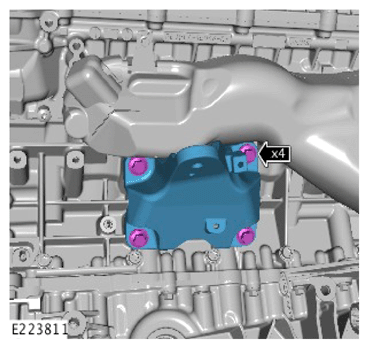

Remove the engine mounting bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

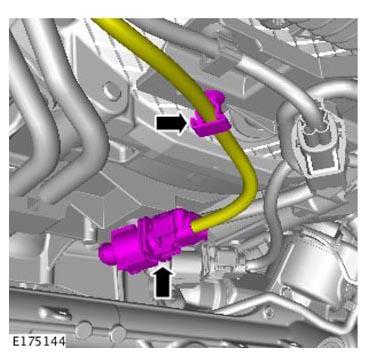

Disconnect the Heated Oxygen Sensor (HO2S) and release the wiring harness from the retaining clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

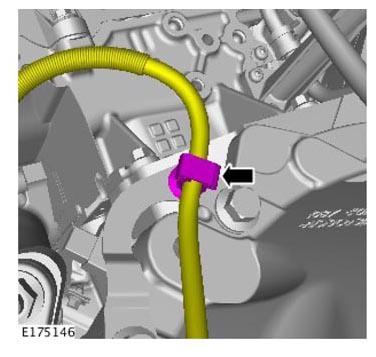

Release the wiring harness from the retaining clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

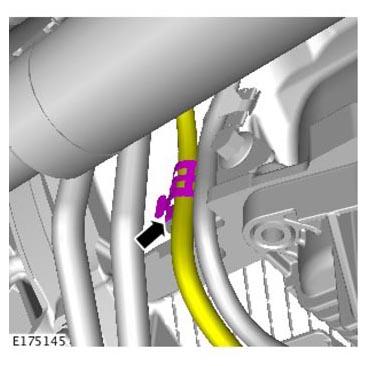

Release the wiring harness from the retaining clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the manifold heatshield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

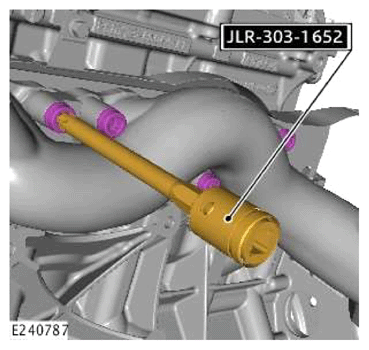

Use the special tool to remove the exhaust manifold bolts.

Install the Special Tool(s) : JLR-303-1652
NOTE: Make sure that the position of the spacers is noted before removal of the manifold.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

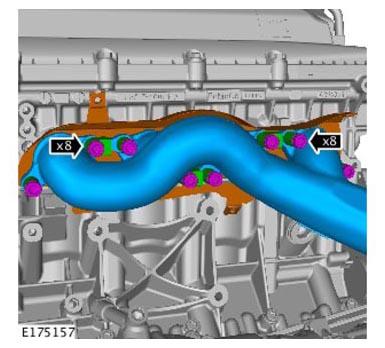

- Remove and discard the bolts.
- Remove the left exhaust manifold and discard the gasket.
  Remove the Special Tool(s) : JLR-303-1652
CAUTION: Make sure that the mating faces are clean and free of foreign material.

NOTE: Only do the following step(s) if a new component is to be installed

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using the special tool remove the HO2S sensor.

Special Tool(s) : 310-121
