Left Engine Mount (G2244077): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
Remove the transmission undershield.
Refer to: TRANSMISSION UNDERSHIELD - PROJECT 8 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

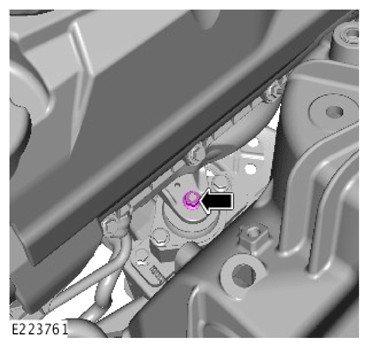

Remove the engine mount nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

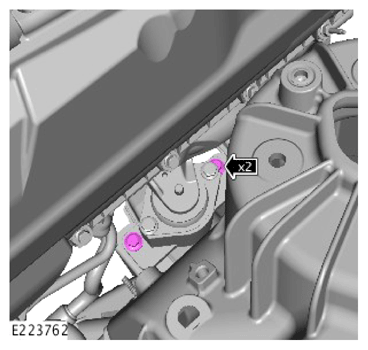

Remove the 2 engine mount bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

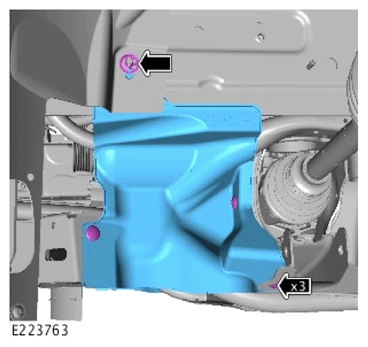

Remove the front wheel arch liner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

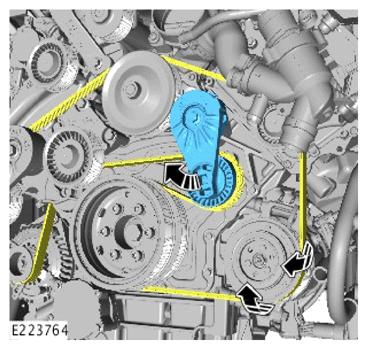

Using a suitable tool release the drive belt from the Air Conditioning (A/C) pulley.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

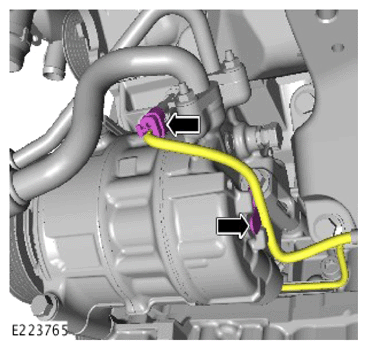

Disconnect the A/C electrical connector.
NOTE: Using suitable retaining straps secure the component to one side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

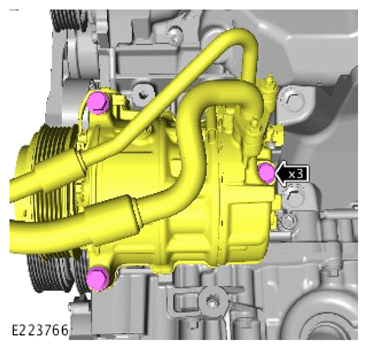

Remove the 3 retaining bolts and reposition the A/C compressor to one side.
CAUTION: Use a wooden block to protect the oil pan when supporting the engine.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

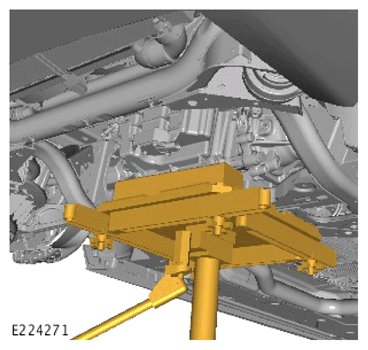

Using the suitable hydraulic jack, support the engine.

General Equipment : Transmission jack
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

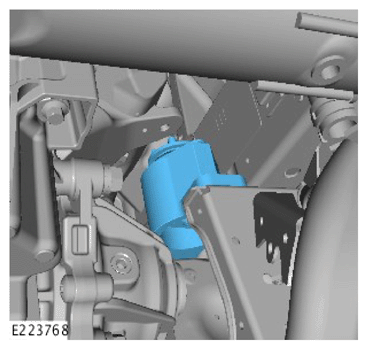

Remove the left engine mount.
