Special Tool(S)

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
G11284950Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

303-1492

Guide Sleeve, Cylinder Head Bolt

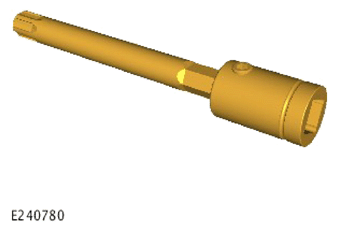

G13882040Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

JLR-303-1653

Cylinder Head Bolt Remover/Installer
