Lubrication System
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

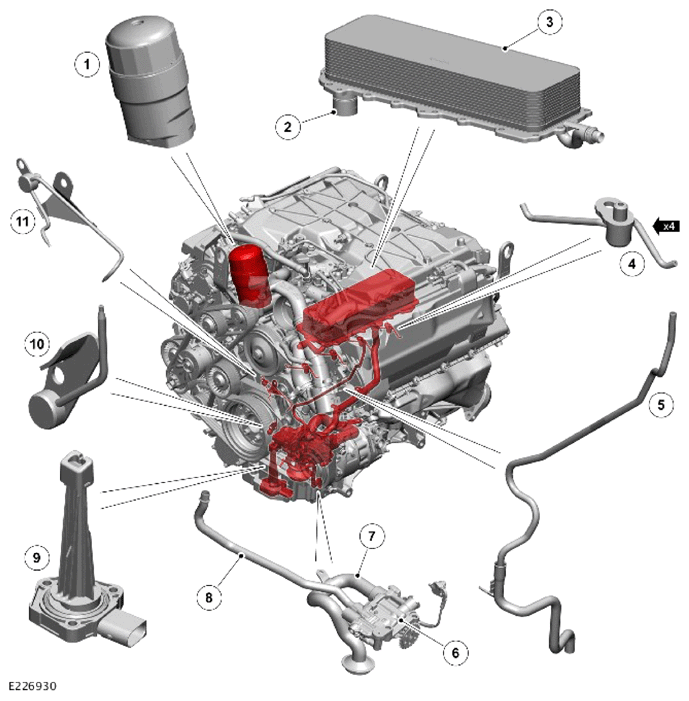

| ITEM | DESCRIPTION |
|---|---|
| 1 | Oil evacuation pipe |
| 2 | Oil filter housing |
| 3 | Anti-drain valve |
| 4 | Oil cooler |
| 5 | Piston oil cooling jet (4 off) |
| 6 | Variable flow oil pump |
| 7 | Oil pick-up pipe |
| 8 | Variable flow oil pump outlet pipe |
| 9 | Oil level and temperature sensor |
| 10 | Secondary timing chain lubrication jet |
| 11 | Primary timing chain lubrication jet |
