Electric Park Brake Release When The Vehicle Has No Electrical Power - Project 8 (G2246237): Check

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Left side shown, right side similar.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the rear wheel and tire assembly.
Refer to: WHEEL AND TIRE
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

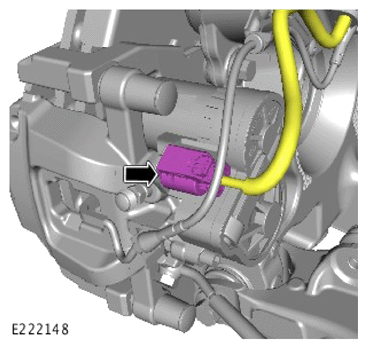

Disconnect the Electric Parking Brake (EPB) electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the EPB actuator and discard the bolts.
- Discard the O-ring seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

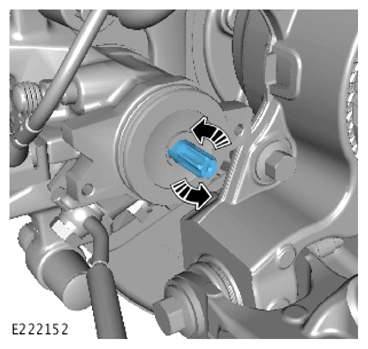

- Turn the left caliper pivot counter-clockwise to set the rear brake caliper to the maintenance position.
- Turn the right caliper pivot counter-clockwise to set the rear brake caliper to the maintenance position.
