Torque specification
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Numbers with a green background are a single use components.

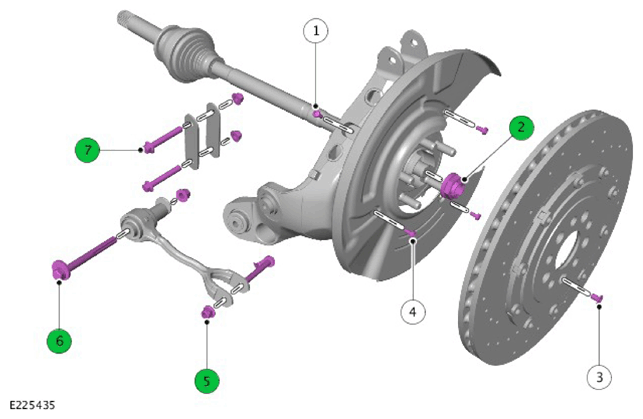

COMPONENT TORQUE LOCATION
TORQUE SPECIFICATION
| DESCRIPTION | NM | LB-FT | LB-IN | |||
|---|---|---|---|---|---|---|
| 1 | Wheel speed sensor bolt | 9 | - | 79.6 | ||
| 2 | Halfshaft outer constant velocity joint retaining nut (Refer to removal and installation procedure for full tightening sequence) | Stage 1: 80 | Stage 2: 60° | Stage 1: 59 | Stage 2: 60° | - |
| 3 | Brake disc bolt | 35 | 25.8 | - | ||
| 4 | Brake disc shield bolt | 9 | - | 79.6 | ||
| 5 | Toe link outer nut and bolt | Stage 1: 60 | Stage 2: 60° | Stage 1: 44.2 | Stage 2: 60° | - |
| 6 | Toe link inner nut and bolt | Stage 1: 60 | Stage 2: 90° | Stage 1: 44.2 | Stage 2: 90° | - |
| 7 | Lower control arm link nut and bolt | Stage 1: 48 | Stage 2: 60° | Stage 1: 35.4 | Stage 2: 60° | - |

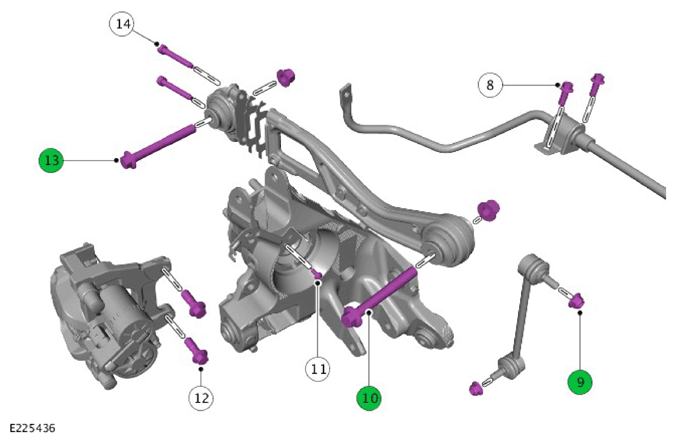

| 8 | Stabilizer bar bracket bolt | 60 | 44.2 | - | ||
| 9 | Stabilizer bar link nut | Stage 1: 48 | Stage 2: 60° | Stage 1: 35.4 | Stage 2: 60° | - |
| 10 | Upper arm inner nut and bolt | Stage 1: 60 | Stage 2: 60° | Stage 1: 44.2 | Stage 2: 60° | - |
| 11 | Brake pad indicator wiring harness bracket bolt | 9 | - | 79.6 | ||
| 12 | Brake caliper retaining bolt | 110 | 81.1 | - | ||
| 13 | Upper arm outer nut and bolt | Stage 1: 60 | Stage 2: 120° | Stage 1: 44.2 | Stage 2: 120° | - |
| 14 | Upper arm outer bushing bolt | 30 | 22.1 | - | ||

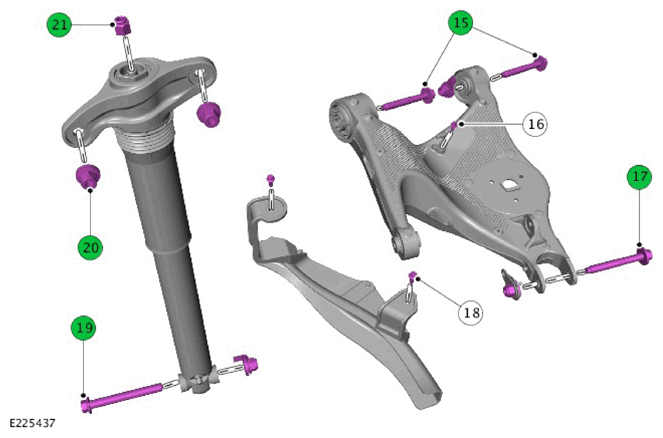

| 15 | Lower arm inner nut and bolt | Stage 1: 110 | Stage 2: 300° | Stage 1: 81.1 | Stage 2: 300° | - |
| 16 | Height sensor bracket bolt | 9 | - | 79.6 | ||
| 17 | Lower arm outer nut and bolt | Stage 1: 110 | Stage 2: 300° | Stage 1: 81.1 | Stage 2: 300° | - |
| 18 | Lower control arm air deflector bolt | 9 | - | 79.6 | ||
| 19 | Shock absorber lower nut and bolt | Stage 1: 70 | Stage 2: 120° | Stage 1: 51.6 | Stage 2: 120° | - |
| 20 | Shock absorber upper nut | Stage 1: 60 | Stage 2: 60° | Stage 1: 44.2 | Stage 2: 60° | - |
| 21 | Shock absorber top nut | 27 | 19.9 | - | ||

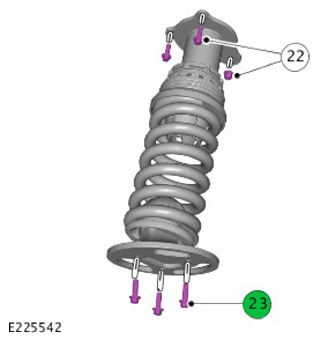

| 22 | Spring upper mounting nut and bolt | 10 | 7.3 | - | ||
| 23 | Spring lower mounting bolt | 24 | 17.7 | - | ||
