Wheel Knuckle (G1856521): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
To avoid damage to the Constant Velocity joint (CV) or CV
boot, do not allow the halfshaft to hang.
NOTE:
- If a new knuckle is to be installed, a new wheel bearing will be required.
- Some variation in the illustrations may occur, but the essential information is always correct.
- Some components shown removed for clarity.
- Deactivate the electronic park brake.
Refer to: ELECTRIC PARK BRAKE SERVICE MODE ACTIVATION AND DEACTIVATION
- Raise and support the vehicle.
Refer to: LIFTING
- Remove the wheel and tire.
Refer to: WHEEL AND TIRE
-
CAUTION: Do not use air or power tools to remove or install the halfshaft nut.
Apply the foot brake and remove and discard the halfshaft nut.
-
CAUTION: Do not use excessive force to remove the component.
-
CAUTION:
- Discard the bolts.
- Do not allow the brake caliper to hang on the brake hose.
-
WARNING: Using a suitable stand, support the lower arm.CAUTION: Discard the nut and bolt.
-
CAUTION: Discard the nut and bolt.
-
CAUTION: Discard the nuts and bolts.
-
CAUTION: As the halfshaft is still installed extra care must be taken when removing the upper control arm. Failure to follow this instruction might disassemble or damage the CV or CV boot.NOTE: Discard the nuts and bolts.
-

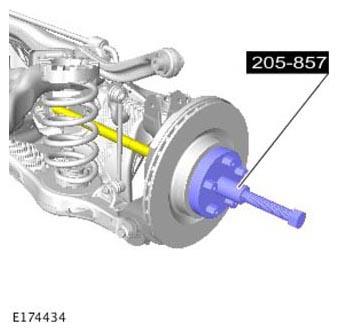

CAUTION: Take extra care when releasing the halfshaft. Failure to follow this instruction might result in damage to the CV boot.
Special Tool(s): 205-857
-
WARNING: The component(s) may be heavy. Take extra care when handling.CAUTION: Discard the bolt.NOTE: Do not disassemble further if the component is removed for access only.
