Wheel Knuckle (G1856521): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

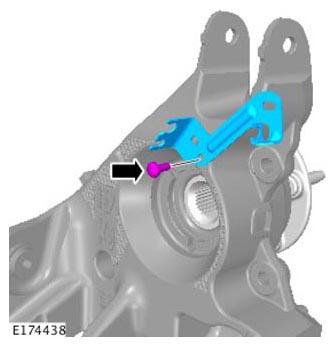

  1. G11305624Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 9Nm

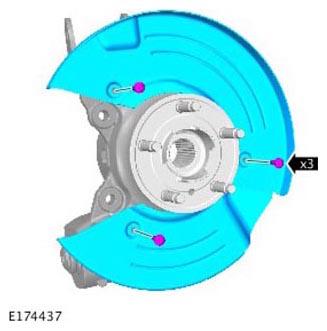

  2. G11305623Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 9Nm

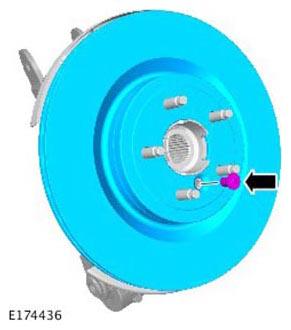

  3. G11305622Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 35Nm

  4. WARNING: The component(s) may be heavy. Take extra care when handling.
    CAUTION:
    • Make sure that a new bolt is installed.
    • Take extra care when handling the assembly. Failure to follow this instruction might result in damage to the CV  or the CV  boot.

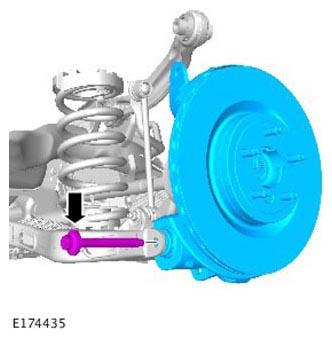

    G11305621Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: Lower control arm bolt(s) Quantity: 1  .

    Torque

    Stage 1: 110Nm

    Stage 2: 60°

  5. CAUTION:
    • Take extra care when installing the upper control arm. Failure to follow this instruction might result in damage to the CV  or the CV  boot.
    • Make sure that a new nut and bolt is installed.

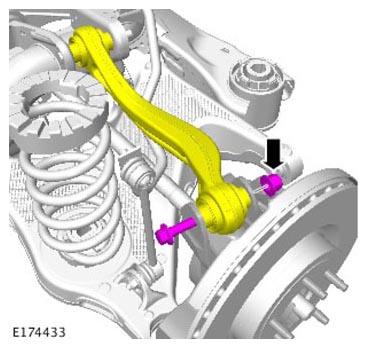

    G11305619Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: Rear upper arm to wheel knuckle nut and bolt Quantity: 1  .

    Torque

    Stage 1: 60Nm

    Stage 2: 60°

  6. CAUTION:
    • Take extra care when installing the halfshaft. Failure to follow this instruction might result in damage to the CV  or the CV  boot.
    • Do not use air or power tools to remove or install the halfshaft nut.

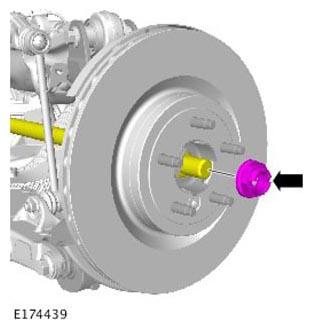

    G11305630Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Use a new halfshaft nut to aid installation of the halfshaft into the hub.

    Renew Part: Rear halfshaft nut Quantity: 1  .

  7. CAUTION: Make sure that new nuts and bolts are installed

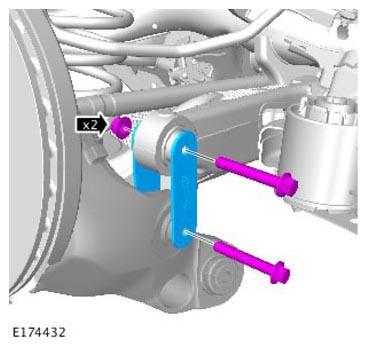

    G11305618Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: Rear lower control arm nut and bolt Quantity: 1  .

    Torque

    Stage 1: 48Nm

    Stage 2: 60°

  8. CAUTION:
    • Discard the nuts and bolt.
    • Make sure that a new nut and bolt is installed.

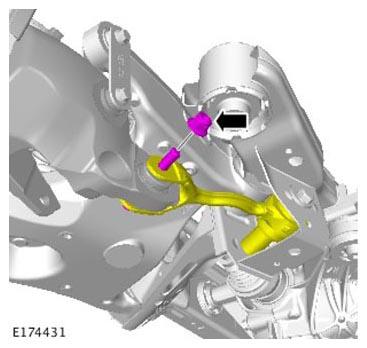

    G11305617Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: Rear lower arm to subframe nut and bolt Quantity: 1  .

    Torque

    Stage 1: 60Nm

    Stage 2: 60°

  9. WARNING: Using a suitable stand, support the lower arm.
    CAUTION: Make sure that a new nut and bolt is installed.

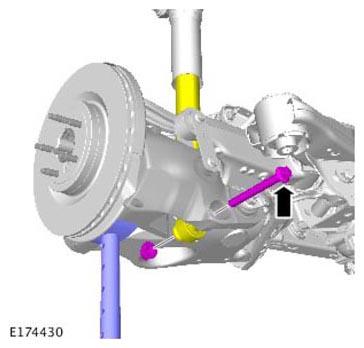

    G11305616Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: Shock absorber to wheel knuckle mounting nut and bolt Quantity: 1  .

    Torque

    Stage 1: 70Nm

    Stage 2: 120°

  10. CAUTION: Make sure that new bolts are installed.

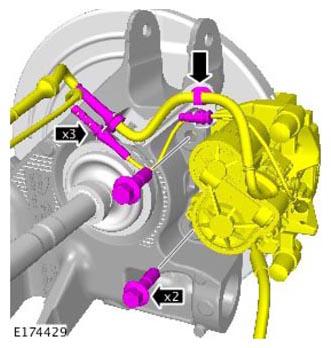

    G11305615Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: Brake caliper carrier bolt(s) Quantity: 1  .

    Torque

    Stage 1: 70Nm

    Stage 2: 120°

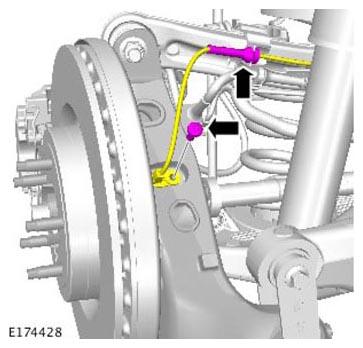

  11. G11305614Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 9Nm

  12. CAUTION: Do not use air or power tools to remove or install the halfshaft nut.

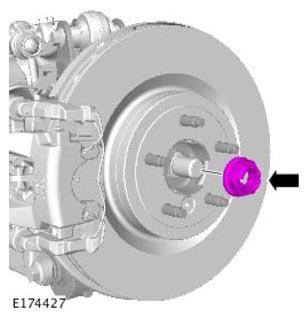

    G11305613Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Apply the foot brake and tighten the new halfshaft nut.

      Torque  : 175Nm

    • Loosen the halfshaft nut.

      Loosen  : 90°

    • Install and tighten a halfshaft nut.

      Torque

      Stage 1: 80Nm

      Stage 2: 60°

  13. Install the wheel and tire.

    Refer to: WHEEL AND TIRE

  14. Activate the electronic park brake.

    Refer to: ELECTRIC PARK BRAKE SERVICE MODE ACTIVATION AND DEACTIVATION
