Upper Arm - Project 8 (G2246515): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Nuts and bolts must be tightened with vehicle at normal ride height.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains illustrations for left side components, right side components are similar.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the wheel and tire.
Refer to: WHEEL AND TIRE - PROJECT 8
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

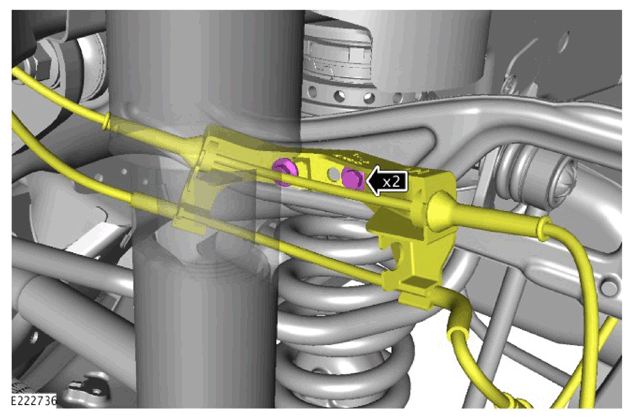

- Remove the 2 bolts.
- Position the wiring harness bracket and wiring harness assembly away from the upper control arm.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Using a suitable transmission jack, support the wheel knuckle.
  General Equipment: Transmission jack

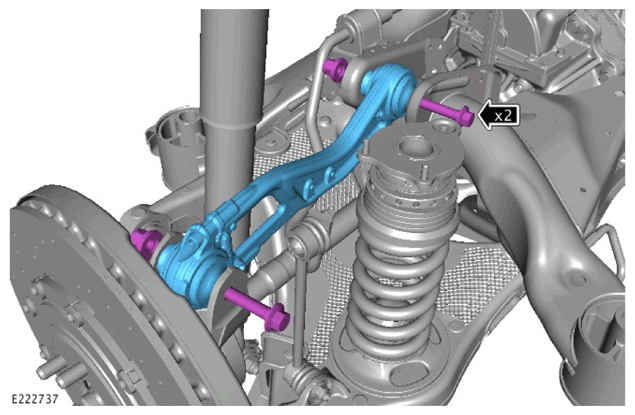

- Remove the 2 upper control arm nuts and bolts.
- Remove the upper control arm from the vehicle.
NOTE: This step is only necessary if a new component is being installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

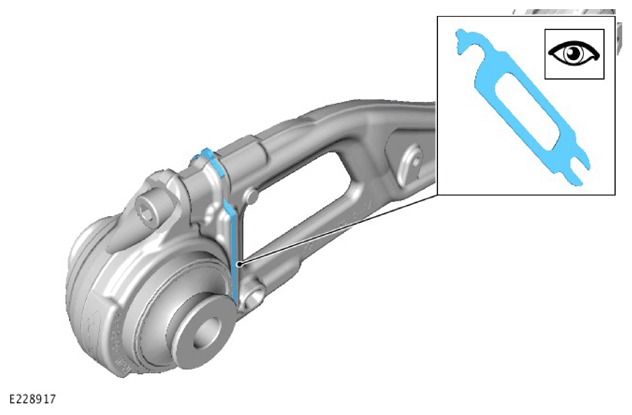

Note the number of adjustment shims installed.
