Upper Arm - Project 8 (G2246515): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This step is only necessary if a new component is being installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

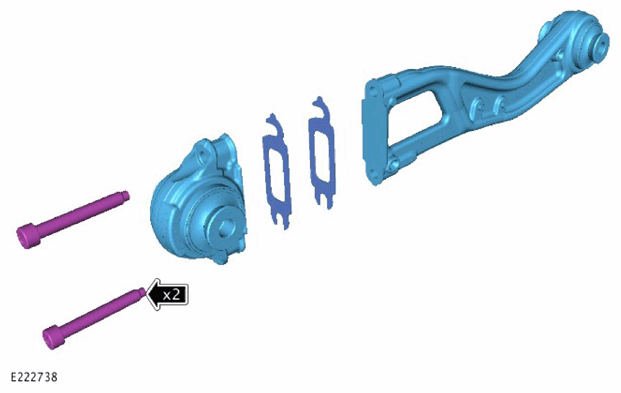

- Install the same number of adjustment spacers noted in the removal step.
- Install the outboard ball joint housing.
- Install and tighten the 2 bolts.
  Torque : 30Nm
- Install the upper control arm assembly.
- Install and tighten the 2 upper control arm nuts and bolts.
  Renew Part: Rear upper arm to wheel knuckle nut and bolt Quantity: 1 .

  Renew Part: Rear suspension upper arm to subframe nut and bolt Quantity: 1 .

  Torque

  Stage 1: 60Nm

  Stage 2: 120°
- Remove the transmission jack.
Reposition the wiring harness bracket. Install and tighten the 2 bolts.
Torque : 15Nm
Install the wheel and tire.
Refer to: WHEEL AND TIRE - PROJECT 8
Using the approved by Jaguar Land Rover 4 wheel alignment equipment, check the wheel alignment and adjust if required.
Refer to: FOUR WHEEL ALIGNMENT - PROJECT 8
