Upper Arm (G1818215): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Nuts and bolts must be tightened with vehicle at normal ride height.
NOTE:
- Some variation in the illustrations may occur, but the essential information is always correct.
- Some components shown removed for clarity.
- Removal steps in this procedure may contain installation details.
- Before replacing the upper arm, make sure to have followed the diagnosis and testing procedure.
Refer to: SUSPENSION ARMS
-
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
- Refer to: WHEEL AND TIRE
-
NOTE:
- Discard the nuts and bolts.
- Using a suitable stand, support the wheel knuckle.

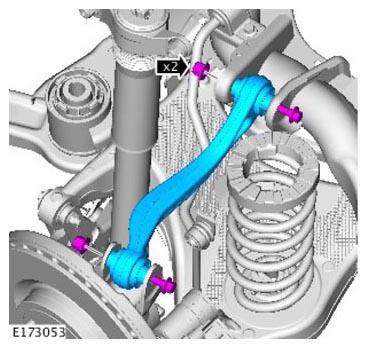

Renew Part: Rear upper arm to wheel knuckle nut and bolt Quantity: 1 .
Torque
Stage 1: 60Nm
Stage 2: 60°
