Spring - Project 8 (G2246517): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains illustrations for left side components, right side components are similar.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Set the rear spring into the track position.
Refer to: WHEEL ALIGNMENT
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

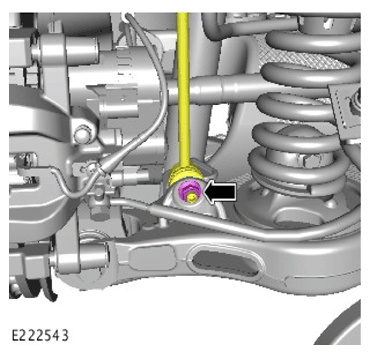

Remove and discard the stabilizer bar link nut and position the stabilizer bar link away from the lower arm.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

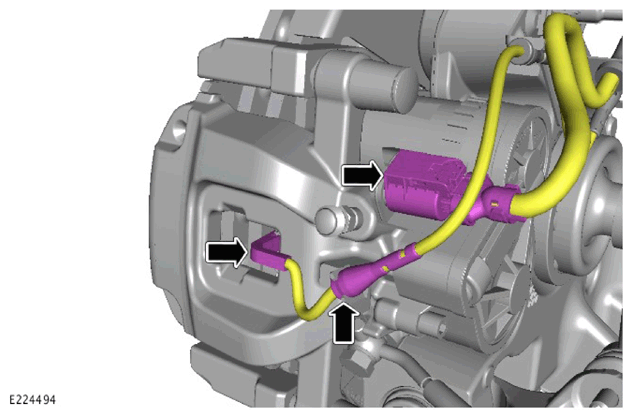

- Disconnect the Electric Park Brake (EPB) electrical connector.
- Release the brake pad wear sensor from the brake pad.
- Release the brake pad wear sensor wiring harness from the retaining clip.
CAUTION: Make sure that the brake hose does not support the full weight of the brake caliper assembly.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

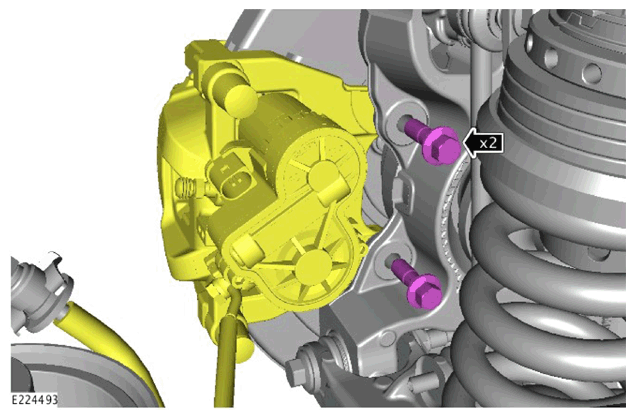

- Remove the 2 brake caliper anchor plate bolts.
- Position the brake caliper assembly away from the wheel knuckle assembly.
- Tie the brake caliper assembly aside with a suitable tie strap.
  General Equipment: Cable ties
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

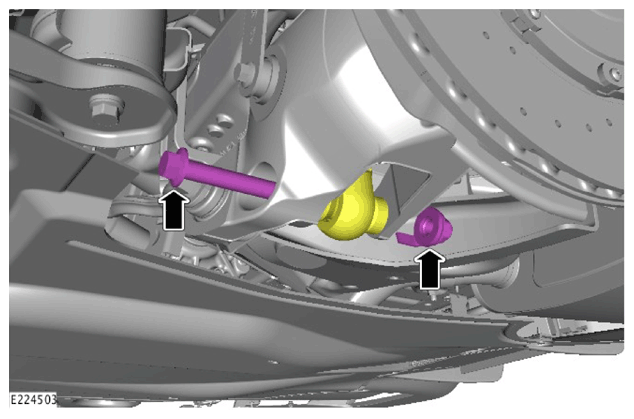

Remove and discard the shock absorber lower nut and bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

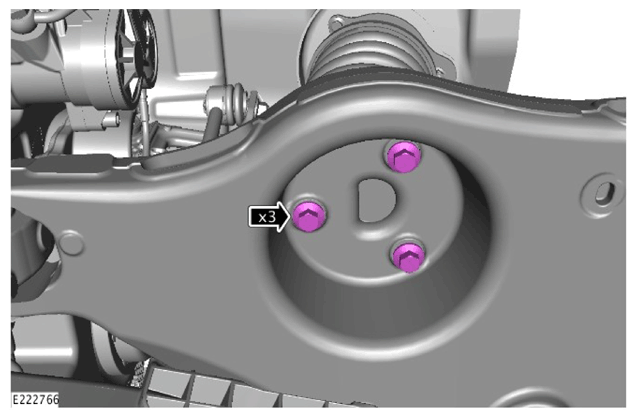

Remove and discard the 3 bolts securing the lower spring mounting.
NOTE: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

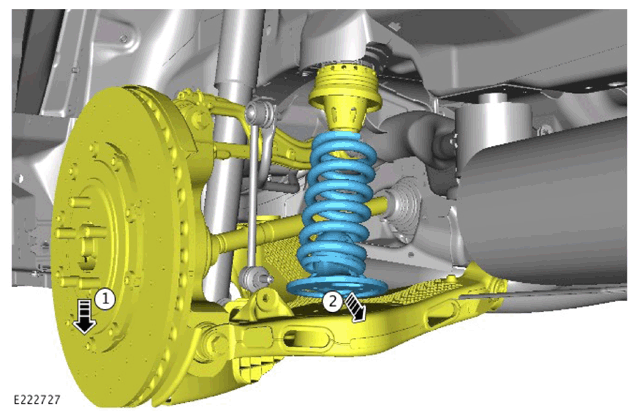

1. Position the lower arm assembly downwards to release the tension on the rear spring.
2. Remove the main spring and lower mount assembly whilst holding the upper spring in position.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

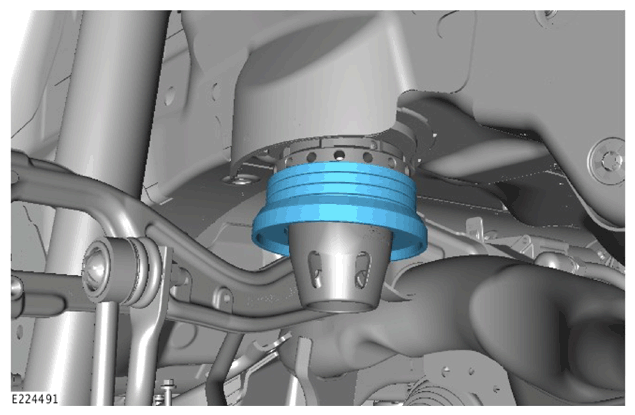

Remove the upper spring.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

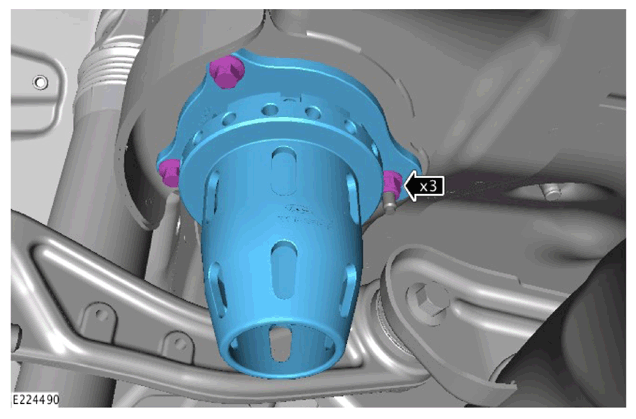

Remove the 3 fixings and remove the upper spring mounting.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

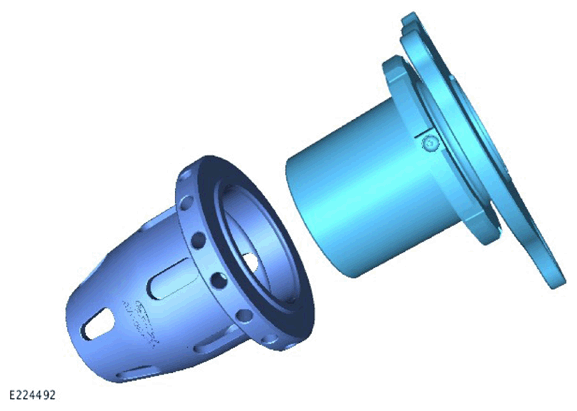

Remove the spring seat from the upper mount.
NOTE: Note the installed position of components before removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

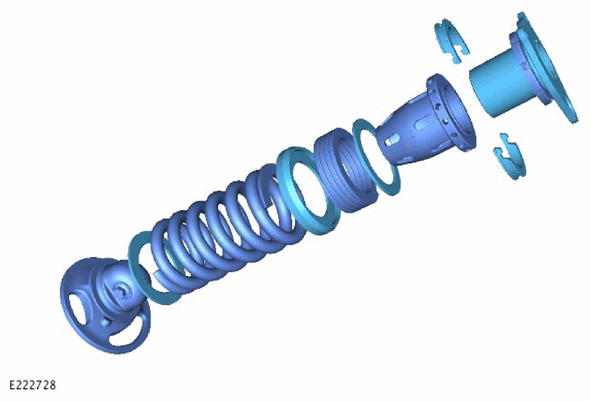

Inspect the components and replace if damaged or worn.
