Spring - Project 8 (G2246517): Installation
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: Steps 1 - 3 only necessary if a new component is to be installed.

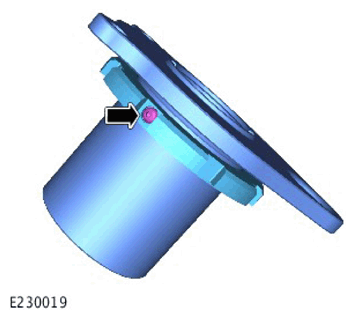

loosen but do not fully remove the locking screw.

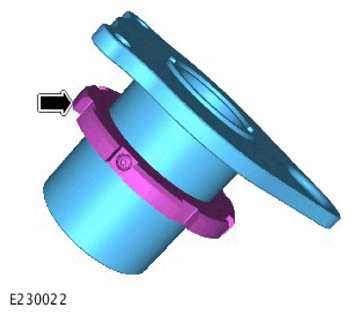

Adjust the adjustment ring to the position noted in the removal step.
- Tighten the locking screw.
Torque : 2.5Nm
-
NOTE: Steps 4 and 5 are only required if previously removed.

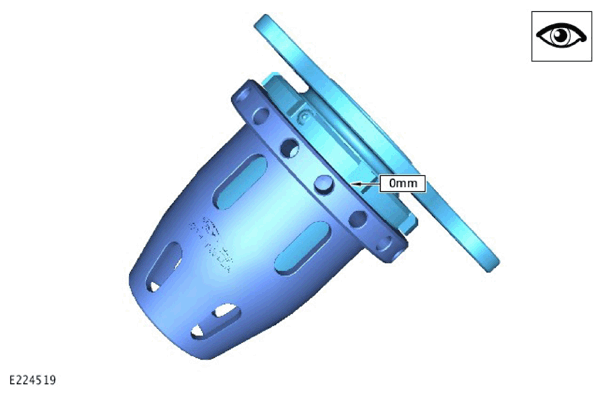

Install the spring seat to the upper mount to the position illustrated.
- Install the upper spring mount assembly.
Torque : 8Nm
-
NOTE: This step requires the aid of another technician.
- Install the upper spring.
- Install the main spring and lower mount assembly.

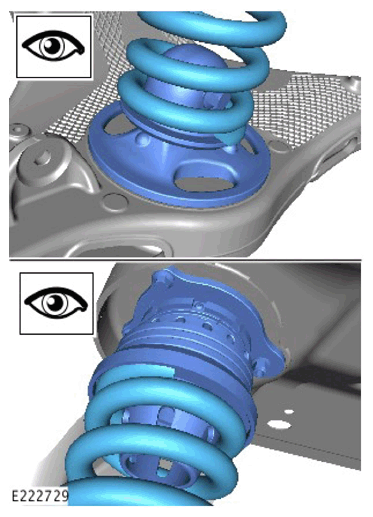

Make sure the spring assembly is correctly installed.
- Install the 3 lower spring mount bolts.
Renew Part: Lower control arm bolt(s) Quantity: 3 .
Torque : 25Nm
- Install the shock absorber lower nut and bolt.
Renew Part: Shock absorber nut and bolt Quantity: 1 .
Torque
Stage 1: 70Nm
Stage 2: 120°
- Reposition the stabilizer bar link and install the new nut.
Renew Part: Stabilizer bar link lower nut Quantity: 1 .
Torque : 60Nm
- Reposition the brake caliper assembly.
Torque : 110Nm
- Connect the Emergency Park Release (EPR) electrical connector.
-
- Connect the pad wear sensor to the brake pad.
- Reposition the wiring harness in the retaining clip.
- Set the spring assembly into the road position.
Refer to: WHEEL ALIGNMENT
