Spring (G1817699): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- To avoid damage to the Constant Velocity joint (CV) or CV boot, do not allow the halfshaft to hang.
- Nuts and bolts must be tightened with vehicle at normal ride height
NOTE:
- Some variation in the illustrations may occur, but the essential information is always correct.
- Some components shown removed for clarity.
- Removal steps in this procedure may contain installation details.
-
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
- Refer to: REAR SHOCK ABSORBER
-

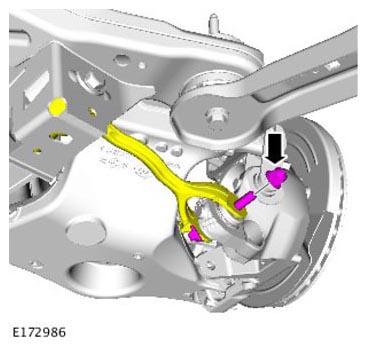

CAUTION: Discard the nut and bolt.
Renew Part: Toe link to knuckle nut and bolt Quantity: 1 .
Torque
Stage 1: 60Nm
Stage 2: 60°
-

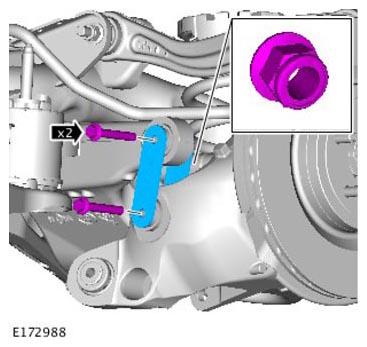

NOTE: Discard the nuts and bolts.
Renew Part: Integral link nuts and bolts Quantity: 1 .
Torque
Stage 1: 40Nm
Stage 2: 60°
-

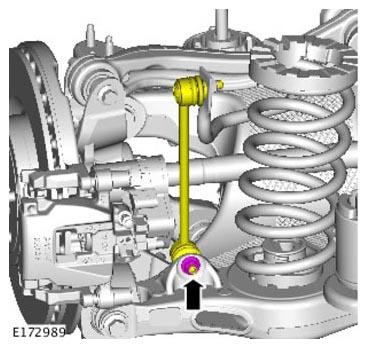

CAUTION: Discard the nut.
Renew Part: Stabilizer bar link nuts Quantity: 1 .
Torque : 60Nm
-

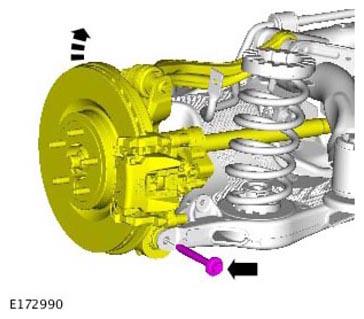

CAUTION:
- Take extra care when handling the assembly. Failure to follow this instruction might result in damage to the CV or the CV boot.
- Discard the bolt.

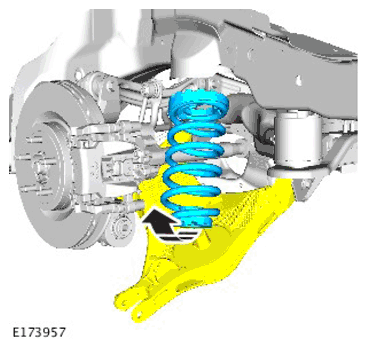

Using a suitable stand, support the lower arm.
Renew Part: Lower control arm bolt(s) Quantity: 1 .
Torque
Stage 1: 110Nm
Stage 2: 60°
