Rear Stabilizer Bar Link (G1818218): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
- Remove the wheel and tire assembly.
Refer to: WHEEL AND TIRE
-

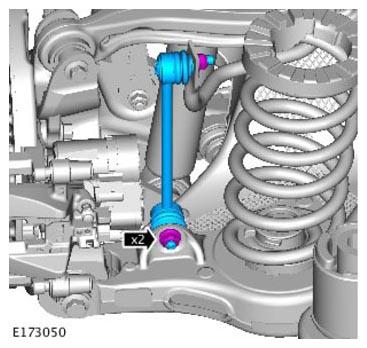

NOTE: Use a wrench on the hexagon provided to prevent the ball joint rotating.
- Remove and discard the 2 nuts.
- Remove the rear stabilizer bar link.
